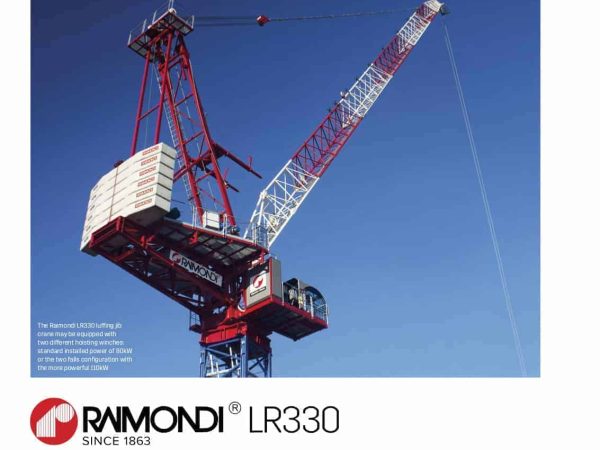

Raimondi LR330

The Raimondi LR330 is the newest luffing jib crane in the range with a maximum jib length of 60 meters and a maximum capacity of 18,000 kg, with two falls and four falls configurations.

At the maximum radius, it can lift 3,300 kg in Ultra-lift mode. Seven different jib length configurations, from 30 meters to 60 meters, satisfy all needs in terms of specific job site configurations.

Metric, EN

Downloads

Metric, EN
Presentation, EN

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

The LR330 may be equipped with three different hoisting winches: standard installed power of 80kW or the two falls configuration with the more powerful 110kW, while the four falls configuration has an installed power of 80kW.

The rope capacities are respectively: 650 meters, 1,000 meters, and 980 meters, and all winches may be equipped with a secondary emergency brake.

GR5H tower 2.1 meter width |  GR6 tower series (GR6B, GR6 and GR6L) 2.3 meter width available in different lengths for easy crane configuration
