- The LR 1700-1.0W is the successor to the LR 1600/2-W
- Unrivalled load capacities and lifting heights
- Crawler travel gear with a particularly powerful and low-wear drive train
Liebherr has unveiled the successor to its successful 600-tonne LR 1600/2-W narrow track crawler crane. With more power and greater lifting height, the LR 1700-1.0W offers the best prerequisites for the efficient assembly of modern wind turbines in wind farms. To meet the challenging demands for driving and steering, Liebherr has equipped the crane’s new narrow-track travel gear with components from its next larger crane class. The new 700-tonner is now the benchmark for narrow-track cranes worldwide.
Ehingen (Donau) (Germany), 18 April – Narrow track crawler cranes are optimised for use on wind farms: they can travel from one turbine to the next along the existing routes and be deployed very quickly. Liebherr developed the first narrow-track lattice boom crawler crane 20 years ago, the LR 1400/2-W. However, in the intervening years wind turbine towers have become taller and wind power components heavier. For this reason, Liebherr launched the significantly more powerful LR 1600/2-W back in 2010, of which around 50 units are currently in operation worldwide. However, assembly of the latest generation of wind turbines now requires cranes with an even higher lifting capacity.

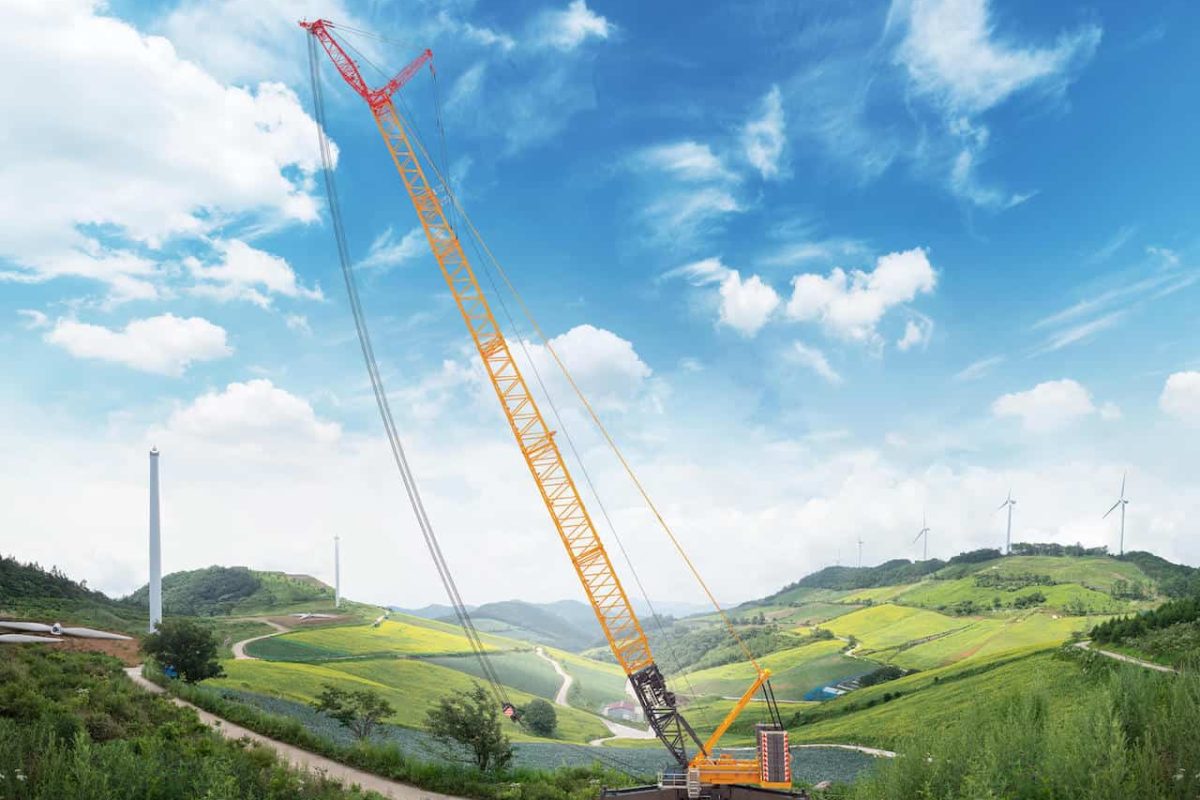

The LR 1700-1.0W is the successor to the successful LR 1600/2-W
Just as the LR 1700-1.0 replaced the LR 1600/2 in Liebherr’s line-up almost two years ago, the narrow track version of the 600-tonner is now also being replaced by the new 700-tonne LR 1700-1.0W. The company’s successful crane concept has thus been continued: Liebherr has designed a narrow crawler travel gear and a new centre section with star support for the existing slewing platform. The boom systems from the standard crane can be adapted to a large extent. At 5.9 metres, the crawler travel gear is only 10 cm wider than its predecessor. When driving, the supports are folded forwards and backward.
The biggest differences to the predecessor model, the LR 1600/2-W, are the new crane’s significantly higher lifting capacities and greater lifting heights. The basis for this is a more powerful basic machine as well as the 3.5-metre-wide H-lattice type sections in the lower area of the main boom, which increase the lateral stability of the entire system.
Comparing the longest wind-turbine boom with the derrick system on the predecessor model (156-metre main boom plus 12-metre lattice type fixed jib) with the new crane with the same boom length results in a 64 per cent increase in lifting capacity (from 73 to 120 tonnes). In addition, the new LR 1700-1.0W can be built up higher: with a derrick system plus 15 metres, without a derrick system plus 6 meters. The new crane thus meets the more challenging requirements of working on modern wind turbines with hub heights reaching 170 metres. Liebherr also offers the LR 1700-1.0W with a luffing jib. This option was not available for its predecessor.
State-of-the-art crawler crane technology
The V-frame and VarioTray have more than proven their worth on the LR 1700-1.0, LR 1800-1.0 and LR 11000 crawler cranes. Therefore, the narrow-gauge variant of the LR 1700-1.0 also receives these innovative systems. The “VarioTray” is a small counterweight frame that can be unbolted quickly and easily as required.
This eliminates the need for tiresome stacking and unstacking of counterweight plates. The V-Frame ballasting system is a hydraulically adjustable folding frame that allows the ballast radius of the 700-tonne crawler crane to be adjusted continuously between 13 and 21 metres. A rigid ballasting system is thus no longer required for large radii. These innovations offer great advantages, especially for wind turbine assembly.
The new narrow track crane also gets the LR 1700-1.0’s modern lattice type fixed jib, which can lift up to 170 tonnes and is designed for both single and parallel operation. Limited rope length is no longer an issue because two winches can work simultaneously over the jib. A particularly wide hook block prevents twisting. To save weight, the whip line is integrated into the head section.
Powerful drive train
Since crawler cranes – and especially narrow track models – have to cope with longer distances and inclines on wind farms, Liebherr’s designers have placed a special focus on maximising the performance of the new LR 1700-1.0W’s drive train. It, therefore, includes components designed for the crawler cranes in the next higher load class. The powerful drive of the new Liebherr narrow track crane raises driving and steering to a higher level while reducing wear. The 4-way drive for the travel gear is standard equipment, as are the two-metre wide crawler pads.
