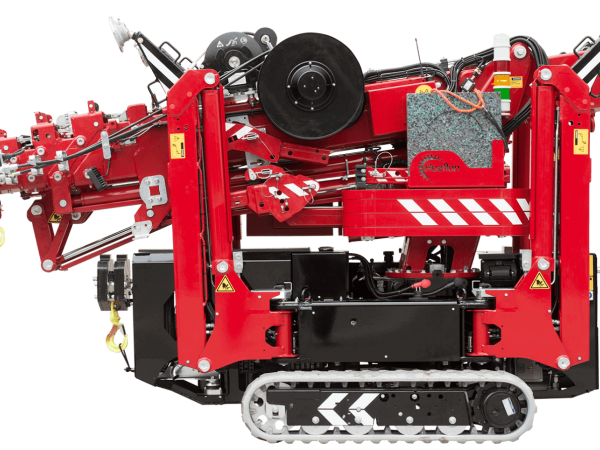

Hoeflon C6

The best-seller in the compact crane category, the C6 compact crane is multifunctional, robust and simple to operate. It is ideal for placing a glass or accurately positioning steel beams and is the only compact crane that can lift more than its own weight – making it possible for one crane to lower another into an underground space.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

thumbnail of C6-spec-mt-en
Metric, EN

Product Description

C6e – Fully electric

The C6 is now also fully electric. With a 60% duty cycle, you can run for eight hours with the crane. The crane is recharged in five hours. Charging and working at the same time is possible. The electric version does not lose any speed compared to the diesel version, it is even a bit smoother.

The used battery cell is LiFePO4. This composition has many advantages. Especially the safety compared to other Li-ion batteries. The LiFePO4 battery cells cannot ignite or explode during charging / discharging. The battery has a long lifespan and can often be discharged and recharged with minimal performance reduction. This composition is environmentally friendly because it contains no toxic heavy metals. The cell can be exposed to high temperatures.

Capacity 3000 kg
Max. outreach 13.7 m x 210 kg
Maximum hoisting height 11,5 m and 16 m with options
Dimensions L x W x H 2.9 m x 0.75 m x 1.82 m
Dimensions including winch and jib 3.14 m x 0.75 m x 1.95m
Total weight 2650 kg 2850kg incl. options
Winch 1000 kg, 2000 kg and 3000 kg
Boom system Cylinder and chain system
Boom angle -5 – 83 degrees
Slewing 360 degrees
Drive system via remote control 1st gear: 1.1 km/h 2nd gear: 2.2 km/h
Engine Yanmar 3 cylinder, 1500 rpm
Incline angle 20 degrees
Ground pressure 0.79 kg/cm2
