Starlifter CX-8T

The CX-8T is the powerful, compact solution to accurate and safe load positioning in civil engineering and other industrial applications, particularly when access and working conditions are restricted.

Used successfully above and below ground and on pontoons and bridges, the highly manoeuvrable rubber-tracked CX-8T, with 360 degrees slew and 4 stages telescopic boom, lifts 8 tonnes, yet occupies a footprint of only 3.48 x 3.48 metres.

Share on facebook
Share on google
Share on twitter
Share on linkedin
Share on pinterest
Share on reddit
Share on tumblr
Share on digg
Share on whatsapp
Share on email

Operating Weight

  • Cabin, steel tracks/rubber shoes – 9030kg

Engine

  • Kubota V2003T turbocharged water-cooled engine 41.8kW @ 2800 rpm (56bhp)

Electrics

  • 12 Volt system

Hydraulic System

  • Pump – Tandem Load sensing variable displacement, max. flow 140 litres/min, max. pressure 280 bar.
  • Track Motors – Two-speed axial piston motor gearbox + cross-line relief + fail to the safe park brake
  • Slew Motor – Axial piston motor/gearbox + crossline relief + fail to the safe park brake
  • Winch Motor – Gear motor/gearbox + over-centre + automatic fail to safe break
  • Derrick Ram – 125mm (5″) double-acting + built-in dual over-centre valve
  • Telescoping Ram – 2 x 80mm (3.14″) Double acting and built-in dual over-centre valves
  • Hydraulic Power Take-Off (PTO) – (Optional) 29 1/m@ 140bar (7.6 US galls/min @ 2060 psi)
  • Stabilisers – 4 x 100mm (4″)
  • Rams – Double acting + dual Pilot operated checks
  • Filtration – 10 microns absolute return line filter

Controls

  • Electric-hydraulic proportional
  • Double-acting circuits
  • 2 x 4 way joystick control for derrick, telescope, winch and slew
  • Hand lever control for tracks
  • Interchanging with boom and winch control 4 x switch control for stabiliser legs

Safety Devices

  • Full safe load indicator, A2B block to block control
  • Winch wire out cutout
  • Armchair lever control cutout on operator entry/exit
  • Mechanical slew lock pin (operated from within cab)
  • Total moment cutout limiter available (optional)
  • Safety valves throughout all lift functions and fail to safe brakes

Performance Data – Boom

  • See full load chart in operators manual for a complete range of duties
  • Boom – retracted – 4350mm (14′ 3″)
  • Boom – extended – 12600mm (41′ 4″)
  • 4 stage boom, 2 stages – hydraulic cylinder operated, 1 stage – wire rope operated
  • Maximum height under hook 12.5 metres
  • Boom angle – 0-73°
  • Derrick time – 15 seconds (0-73°)
  • Up: 20 seconds, Down 19 seconds
  • Telescoping time – Out: 37 seconds, In: 34 seconds
  • Hoisting speed – 40 metres/minute
  • Wire rope – 110mm x Ø13mm
  • Wire rope – 48M drop on 2 falls
  • Wire rope – 24M drop on 4 falls

Machine Overall Dimensions

  • Width 2235mm, Length 5680mm, Height 2550mm
  • Tail Rad. 1560mm, Legs deployed footprint 3480 x 3480mm

Slew

  • Continuous 360° at 3.0 RPM

Gradability

  • 32 degrees – (58%)

Travel Speed

  • 0 – 4 km/h

Track Equipment

  • Standard specification – Steel tracks with bonded rubber shoe 135mm pitch
  • 12 bottom rollers (6 per side)
  • 2 top rollers (1 per side)
  • Shoe width 400mm (16″)
  • Ground Length 1925mm (6’4″)
  • Ground Pressure 0.58 KG/CM2 (8.35lbs/in2)

Instruments

  • Gauges for water temperature, engine oil pressure, warning lights for hydraulic filter bypass, hour meter, machine levelling indicator, safe load indicator

Fuel Tank Capacity

  • 95 litres (25.0 US galls)

Hydraulic Reservoir

  • 160 litres (42.3 US galls)

Optional Equipment

  • Cab air conditioning
  • Steel track undercarriage
  • All rubber track
  • Dual fail to safe on the winch
  • Fly jib 5.0m (16’4″)

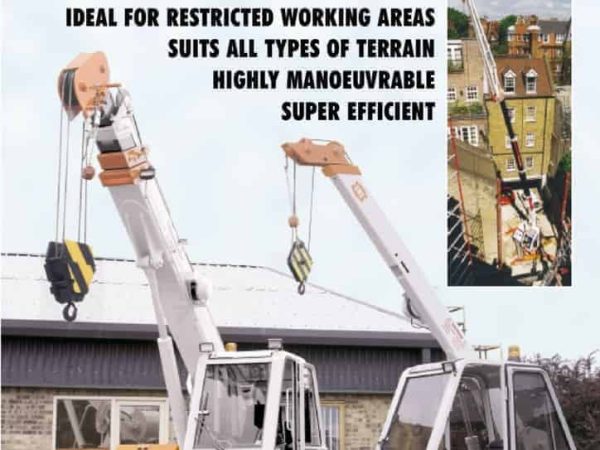

thumbnail of CX-3T_CX-8T_spec_mt_en
