Manitowoc officially launches the new Potain MCT 565 at Bauma China 2018. The crane is the manufacturer’s largest topless crane yet, and part of its Asia Range built in China. It features class-leading capacity and exceptional flexibility with easy transportation and fast assembly

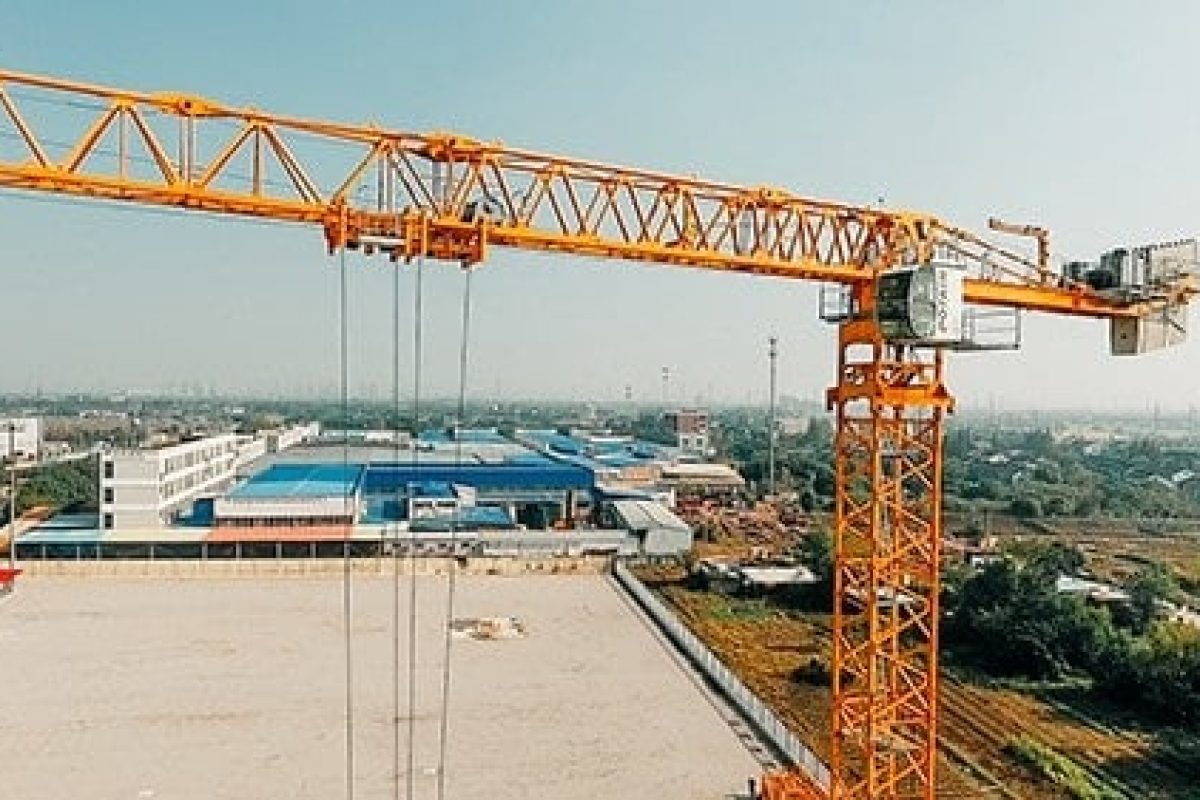

Manitowoc has officially launched the Potain MCT 565, currently its largest topless crane, at this year’s Bauma China 2018. The company invited customers, dealers, end users and media to a specially-arranged event inside the Shanghai trade fair to present the crane. The following day a group of special guests were welcomed to the Manitowoc factory in nearby Zhangjiagang where the MCT 565 was shown fully assembled, complete with its full 80 m jib.
Francois Rotat, product manager for Potain tower cranes, said the new model gives customers a lower total cost of ownership and allows them to take on new projects.
“The first topless cranes from our Zhangjiagang factory in China launched in 2012 and are now a huge success,” he said. “As acceptance grows it’s natural we extend the concept into new markets. The MCT 565 offers the benefits of topless cranes on significantly larger projects. Asia-Pacific, Africa, Latin America, the Middle East, Russia and other CIS countries have ambitious construction programs and cranes like the PotainMCT 565 will help those regions meet their goals.”
With the rising popularity of topless cranes and the increasing use of heavier construction materials, Manitowoc expects strong demand for higher capacity models. The MCT 565 proved a strong attraction at Bauma China 2018, not only for its size but also for the opportunities it presents. Its load moment of 550 tm is a significant step up from the company’s existing topless range.
The crane offers jib length configurations from 30 m to 80 m in 5 m increments. At its 80 m jib end, the MCT 565 can handle an impressive 4 t. Despite its increased size, the new model stays true to the design characteristics of Potain topless cranes, with easy transport and erection combining with excellent on-site performance.
The upper section of the Potain MCT 565, with its full 80 m jib, travels on just nine trucks thanks to innovative, space-saving design features such as a folding cab on the slewing unit and a folding counter jib. At the job site, set up can be finished inside two days and options such as the detachable cab assist with this. Users have the option to split the slewing unit, counter jib and jib into different sizes depending on available space as well as the capacity of the assist crane.
For the counter-jib there are three options of 17 m, 21 m and 24 m, with users making their selection based on chosen jib length. This design feature not only aids transportation and erection, but it also optimizes the crane’s overall footprint on tight job sites. The slewing unit has a ‘plug-and-play’ design with much of the wiring completed at the factory. This makes installation faster and easier, delivering further cost and time savings, while a host of other features facilitate installation. These include dedicated sling points on the counter-jib and transport brackets on the jib to facilitate easier loading into the crane’s compact transport configuration.
To deliver class-leading performance with this new crane, Potain has developed a new family of mast sections, the C800 and C850. These are offered on the new model as well as a range of its other cranes, and several configurations are possible on the MCT 565. There are C809A standard jib sections measuring 5 m. Or users can opt for CR809A reinforced sections of 5 m or the shorter CR809C reinforced sections of 3.33 m. Depending on jib length, maximum free-standing height for the crane ranges from 70.9 m to 75.9 m. Climbing the crane up to 200 m is achieved with only three anchorage points. An additional option for the MCT 565 is the BC60R floor climbing system on 2 m mast sections. This compact option will appeal to contractors looking for an internal floor climbing crane for use on tall buildings.
Multiple Choice
Aside from working height, there is further flexibility in capacity with three versions of the MCT 565 on offer. Maximum capacities are 20 t, 25 t and 32 t. For the 20 t and 25 t versions, there are two winches available, including one unit from the industry-leading High-Performance Lifting (HPL) range. These ultra-fast hoists have high rope availability, making them perfect for high-rise developments.
Customers can select either a 100 LVF from the regular line of Potain frequency-controlled hoists or a 150 HPL from the High-Performance Lifting range. The 150 HPL winch has a drum capacity of 1,200 m on the 20 t and 25 t models. For the 32 t version, the 150 HPL winch is offered. All winches are available with a safety brake option.
In combination, these features give the MCT 565 class-leading lifting performance, beating all competitors across the load chart in this capacity class. As with all Potaincranes from the company’s Asian range, Manitowoc is expecting strong interest in the new model, not only in Asia but also the Middle East and Latin America. Deliveries of the Potain MCT 565 will begin in early 2019.
