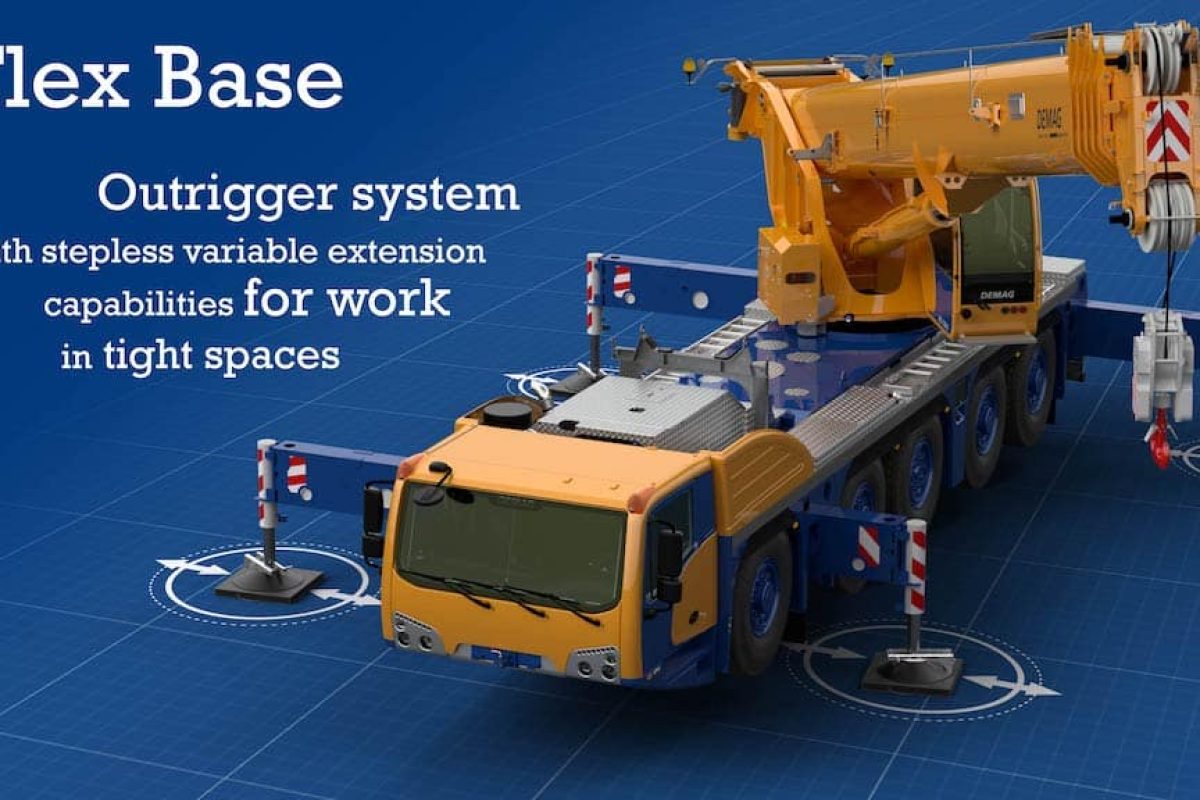

210828 flex base

Adding even more value to the Tadano crane line, the five-axle Demag AC 130-5 all-terrain crane now features the stepless variable outrigger system, Flex Base. This exclusive system offers more flexibility and a competitive edge when working in confined spaces by calculating crane capacity based on each outrigger’s extension point, rather than a fixed position.

By allowing outriggers to be positioned right up to obstruction for calculating crane capacity, Flex Base delivers more lifting versatility when working in confined areas, such as crowded construction sites, inside structures or in congested urban areas.

The Demag AC 130-5 is added to the growing list of Tadano all-terrain cranes offering Flex Base, which also includes the AC 45 City, AC 55-3, AC 60-3 and the recently introduced AC 4.080-1 models.

Stepless outrigger positioning works in conjunction with the IC-1 Plus control system. Containing all the lift charts for every crane configuration of the AC 130-5 crane, IC-1 Plus determines lift capacity in real-time, based on outrigger setup, counterweight, superstructure angle, main boom length and telescoping sequence. With Flex Base, no longer are crane capacities calculated from fixed outrigger positions and 360-degree load charts. This delivers the maximum possible lift capacities in any outrigger configuration, even asymmetrical.

Flex Base and IC-1 Plus allow cranes to carry out more lifts from positions that are otherwise unreachable, expanding the range of potential applications. To further increase on-site lifting efficiency, the online IC-1 Lift Plan tool offers lift preplanning, so owners can determine the crane’s exact position and configuration required to perform the lift.

With a total length of only 14.4 m (47.2 ft) and a width of 2.75 m (9.0 ft), the Demag AC 130-5 is the most compact crane in the 130-t (140-USt) capacity, class. While offering a compact size to fit in tight spaces, the crane features a long, 86.5-m (283.8-ft) maximum system length.
