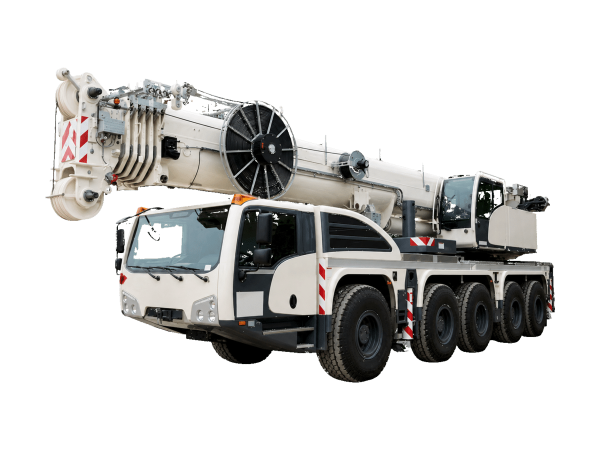

Demag AC130-5
The Demag AC 130-5 crane has a maximum carrying capacity of 130 tons at a reach of 3 meters, and its capacity reduces to 1.6 tons at its maximum reach of 62 meters. The crane features a maximum standard boom length of 59.8 meters and a minimum of 12.5 meters. It is equipped with a Scania DC13 engine that produces 405 kW of power and achieves a travel speed of up to 85 km/h. This 5-axle crane has a sophisticated design, offering high performance and versatility for various lifting tasks .

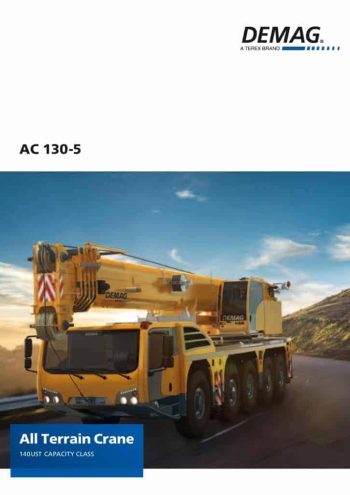

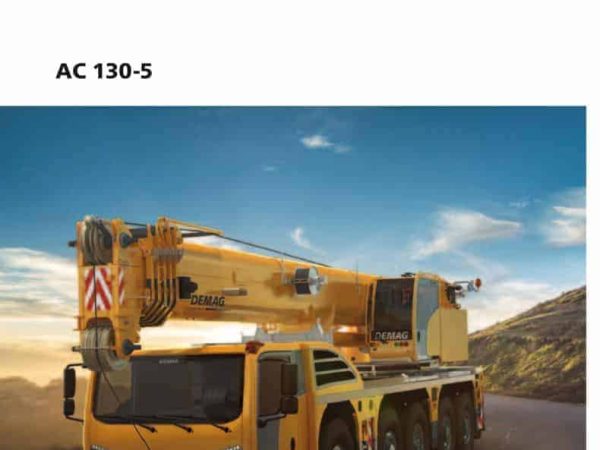

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The Demag AC 130-5 all-terrain crane is equipped with robust features tailored for versatile and powerful lifting capabilities. This crane comes with a Euromot 4/Tier 4F compliant Scania DC13 diesel engine, delivering an impressive 368 kW (500 HP) and a torque of 2373 Nm. The engine is designed for optimal performance while adhering to stringent environmental standards, and it’s complemented by a stainless steel exhaust system.
For fuel efficiency and extended operation times, the AC 130-5 has a substantial fuel tank capacity of 480 liters for diesel and an additional 60 liters for AdBlue. The transmission system, an AS12INT ZF AS-Tronic, features an automated gearbox with 12 forward speeds and 2 reverse, integrated with a hydraulic retarder for smooth and controlled operation.
The crane’s mobility is enhanced by its 10 x 6 x 10 drive configuration, with five axles where the second, fourth, and fifth are driven and equipped with selectable transverse lock, and the fourth axle also features a selectable longitudinal lock. All axles are steerable, supported by a hydropneumatic suspension system with axle load compensation and a dual-circuit steering system offering six steering programs for unparalleled maneuverability.
Safety is paramount, with a comprehensive brake system that includes pneumatic dual circuit service brakes on all wheels, disc brakes, an integrated hydraulic retarder, and additional exhaust brake along with a parking brake.
The superstructure of the AC 130-5 is equally impressive, boasting a telescopic boom that extends from 12.5 m to 59.8 m, allowing for a maximum capacity of 64.3 t. The counterweight system totals 31.6 t, spread over six pieces for balanced lifting operations. Outriggers are of an H-4-point design, with full hydraulic movement and three outrigger bases for stability across various terrains.
The crane also features a state-of-the-art control system enabling four simultaneous working movements, electric pilot controls, and multiple operating modes for hydraulic circuits. The operator aids include the IC-1 system with an integrated electronic load moment indicator, providing essential data for safe and efficient crane operation.
Designed for operator comfort, the crane cab is equipped with engine-independent heating, adjustable seating, and is structurally designed to offer a clear view of the operational area, ensuring both comfort and control during lifting operations.
With its comprehensive technical specifications and built-in safety and comfort features, the Demag AC 130-5 is engineered to meet the demands of a wide range of lifting tasks, demonstrating Demag’s commitment to innovation, efficiency, and safety in crane design.
Technical Details | Metric | Imperial |
---|---|---|
Capacity class | 130 t | 140 US-tons |
Main boom length | 60 m | 197 ft |
Maximum system length | 86,5 m | 284 ft |
Maximum counterweight | 42,2 t | 46,5 US-tons |
Overall length | 14,45 m | 47,4 ft |
Carrier length | 12,17 m | 39,9 ft |
Turning radius over cabin /all axle steered | 12,37 / 10,99 m | 40.6 / 36.1 ft |
Carrier engine | 368 kW | 500 hp |
Maximum travel speed | 85 km/h | 53 mph |
Drive chain (optional) | 10 x 6 x 10 (10 x 8 x 10) | 10 x 6 x 10 (10 x 8 x 10) |
Tyres | 14.00 (16.00 / 20.5) | 14.00 (16.00 / 20.5) |
Maximum gradeability | 64% | 64% |
