Tadano ATF220G-5

Mobile Crane

The Tadano ATF 220G-5 is a 220-ton all-terrain crane, introduced to the European market in November 2006 and later showcased at Bauma China in December 2006. It features a 7-section 68-meter (223-foot) telescopic boom, equipped with Tadano’s Lift Adjuster system for enhanced safety and precision during lifting operations. Built on a five-axle carrier, the ATF 220G-5 offers exceptional mobility, stability, and lifting performance, making it a preferred choice for heavy construction, infrastructure projects, and industrial lifting applications. The crane gained global recognition, with milestone deliveries in Australia and the UK, reinforcing Tadano’s reputation for reliable and user-friendly all-terrain cranes.

⬇ DOWNLOADS ⬇

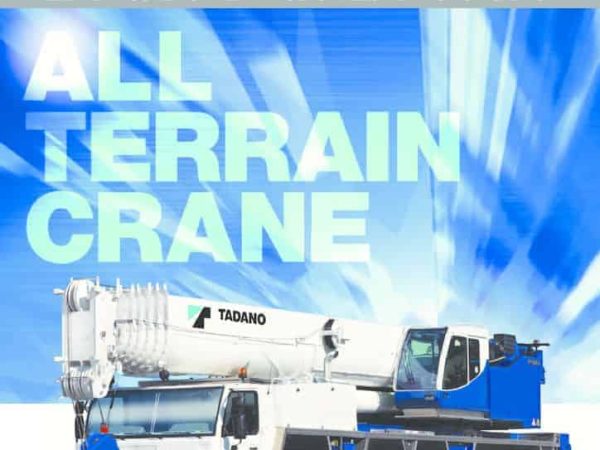

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

The Tadano ATF 220G-5 is a versatile and high-performance 220-ton all-terrain crane, designed for efficient lifting operations across various industries. Released to the European market in November 2006, it quickly gained popularity for its ease of operation, advanced safety features, and strong lifting capabilities. It was later showcased at Bauma China 2006, Asia’s largest construction equipment exhibition, where it was displayed alongside the Tadano GR-700EXL rough terrain crane and Tadano’s BQ-Tadano joint-venture truck cranes (GT-250E, GT-350E, and GT-550E).

Key Features & Performance
Maximum Lifting Capacity: 220 tonnes (242 US tons) at 3-meter working radius.
Boom & Jib Configurations:
7-section telescopic boom: 68 meters (223 feet).
Optional telescopic luffing jib: Extends the system height further for high-reach applications.
Lift Adjuster System:
Reduces load sway and improves lifting accuracy, an important safety feature also found in the Tadano ATF 160G-5.
Five-Axle Carrier:
Provides excellent mobility and maneuverability, suitable for both urban and off-road job sites.
Milestones & Global Expansion
The Tadano ATF 220G-5 quickly became a sought-after crane in international markets, with significant deliveries marking its success:

Australia – GBP Crane took delivery of the first ATF 220G-5 in New South Wales, supplied by Tadano Oceania. At the time, it was Tadano’s second-largest all-terrain crane, following the ATF 400G-6.
United Kingdom (UK) – Hewden, a UK-based rental company, invested £11.5 million in 21 Tadano all-terrain cranes in 2016. This included two ATF 220G-5 units, which became the first units of this model in the UK. These cranes featured a 21-meter telescopic luffing jib, making them ideal for complex lifting tasks. The order also included:
3× ATF 130G-5 (130-ton, five-axle cranes)
6× ATF 100G-4 (100-ton, four-axle cranes)
10× ATF 70G-4 (70-ton, four-axle cranes)
With its strong lifting capabilities, advanced safety features, and proven reliability, the Tadano ATF 220G-5 remains a preferred all-terrain crane for rental fleets and contractors worldwide, offering efficiency, precision, and superior mobility for demanding lifting applications.
