Terex Explorer 5800

Mobile Crane

The Terex Explorer 5800 is a 220-ton all-terrain crane, introduced at Bauma Munich 2013, featuring a 70-meter (229.7-foot) telescopic boom, making it a strong competitor against models like the Grove GMK5220, Tadano ATF 220G-5, and Liebherr LTM 1220-5.1. Powered by a single Scania Euromot IV/Tier 4 diesel engine, it integrates an intelligent control system that automatically adjusts power demand for optimal fuel efficiency. The Explorer 5800 supports multiple axle load configurations, ranging from 9.1 to 16.5 tons per axle, making it adaptable for global market requirements. Although initially well-received, Terex later discontinued the model, replacing it with the Demag AC 220-5.

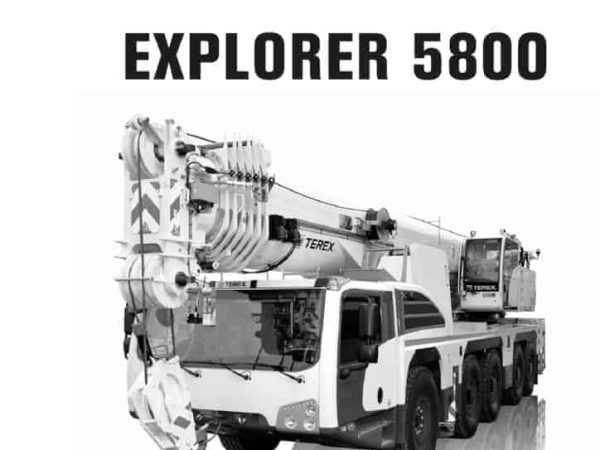

⬇ DOWNLOADS ⬇

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

Unveiled at Bauma Munich 2013, the Terex Explorer 5800 was introduced as a modernized 220-ton all-terrain crane, featuring a redesigned cab, enhanced performance, and improved mobility. It was one of the key attractions at the event, with Terex showcasing its new-generation all-terrain crane technology.

The Explorer 5800 is equipped with a 70-meter (229.7-foot) telescopic boom, offering exceptional reach for its class. Competing with industry-leading models like the Grove GMK5220, Tadano ATF 220G-5, and Liebherr LTM 1220-5.1, it provided excellent lifting capacity and versatility. The crane’s flexible axle load configurations (ranging from 9.1 to 16.5 tons per axle) ensured compliance with various regional transport regulations, making it suitable for global markets.

A key innovation of the Explorer 5800 was its single-engine concept, powered by a Scania Euromot IV/Tier 4 diesel engine. This system incorporated an automatic power demand controller, allowing the engine to efficiently distribute power between the carrier and superstructure, improving fuel economy and reducing emissions. This made the Explorer 5800 one of the most fuel-efficient cranes in its class.

Despite its initial success, Terex later discontinued the model, replacing it with the Demag AC 220-5, which featured further refinements in performance, control systems, and transport efficiency.

Global Milestones & Deliveries
January 2014 – NMT Crane Hire (UK) took delivery of the world’s first Terex Explorer 5800, replacing its existing Terex-Demag AC 200-1.
Czech Republic – Malina Crane Hire acquired the first unit in the Czech Republic, personally picked up from Terex’s Zweibrücken facility.
April 2014 – S.V.M.M (France) became the first owner of the Explorer 5800 in France, after an inspection at the Terex Visitor Center.
Bauma China 2014 – Asiagroup Leasing Pte Ltd (Singapore) received the first unit in Asia and Singapore, marking its expansion into Southeast Asia.
USA – Bengal Transportation Services (Louisiana) purchased the first Explorer 5800 in the USA, supplied by Dozier Crane, and immediately deployed it for ammonia plant operations.
2016 (India) – H N Construction Pvt (India) took delivery of the first Explorer 5800 in India, deploying it for work at Bokaro Steel Plant, one of the country’s largest steel facilities.
April 2015 (Switzerland) – Welti-Furrer received the first two units of the Explorer 5800 in Switzerland, expanding its fleet for infrastructure and industrial projects.
With its modernized design, strong lifting capabilities, and advanced engine efficiency, the Terex Explorer 5800 was a significant step forward in all-terrain crane innovation before being phased out for the Demag AC 220-5.
