Demag AC250-6

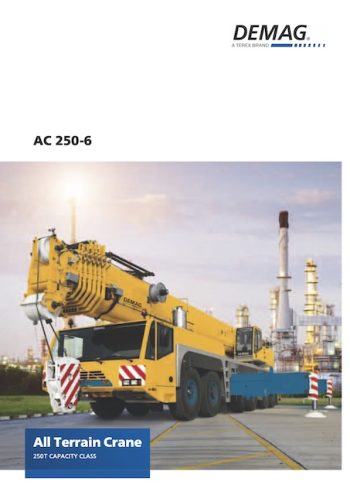

thumbnail of Demag AC250-6 Datasheet Metric
Metric, EN
thumbnail of Demag AC250-6 Datasheet Imperial
Imperial, EN

Additional Information

Share Load Chart

Share on facebook
Share on google
Share on twitter
Share on pinterest
Share on whatsapp
Share on email

Technical Specifications

Technical Details Metric Imperial
Capacity class 250 t 300 US-tons
Main boom length 80 m 262.5 ft
Main boom extension 36 m 118.1 ft
Maximum system length 77,2 + 36 = 113,2 m 253.3 + 118.1 = 371.4 ft
Maximum counterweight 96,6 t 106.3 US-tons
Overall length 16,97 m 55.7 ft
Carrier length 14,96 m 49.1 ft
Turning radius over cabin 13,60 m 44.6 ft
Carrier engine 450 kW 612 hp
Superstructure engine 205 kW 279 hp
Maximum travel speed 85 km/h 53 mph
Drive chain 12 x 8 x 10 12 x 8 x 10
Tyres 14.00 (16.00 / 20.5) 14.00 (16.00 / 20.5)
Maximum gradeability 77 % 77 %
