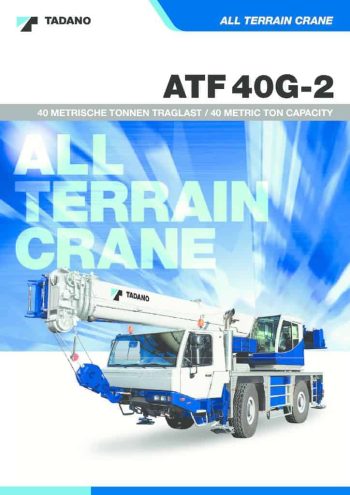

Tadano ATF40G-2

Mobile Crane

The Tadano ATF 40G-2 is a 40-ton all-terrain crane, introduced at Bauma 2007 in Munich, Germany, as a replacement for the ATF 30-2 (35-ton model). It features a 35.2-meter (115.5-foot) main boom and a 9-meter (29.5-foot) jib, providing enhanced reach and lifting versatility. Designed for smooth and efficient operations, the ATF 40G-2 incorporates hydraulic pilot control and a rapid boom extension system, utilizing a single-cylinder mechanism with ropes for faster deployment. Tadano’s AML (Automatic Moment Limiter) system comes standard, ensuring safe and precise lifting operations.

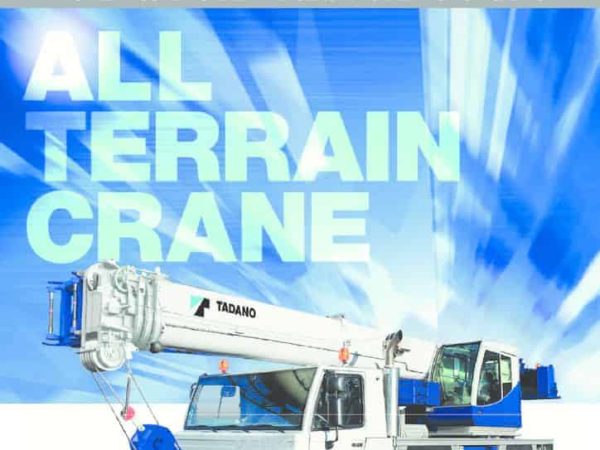

⬇ DOWNLOADS ⬇

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

The Tadano ATF 40G-2 is one of Tadano’s smallest capacity all-terrain cranes, introduced at Bauma 2007 as a modernized replacement for the ATF 30-2 (35-ton class). This upgrade brought improvements in boom length, lifting performance, and operational efficiency, making it a highly capable crane for construction, industrial lifting, and urban infrastructure projects.

The crane features a five-section telescopic boom, extending up to 35.2 meters (115.5 feet), offering a longer reach compared to its predecessor. Additionally, it includes a 9-meter (29.5-foot) jib, increasing its maximum working height and lifting flexibility. The boom system is designed for rapid extension, utilizing a single-cylinder mechanism with rope support, allowing for quick and smooth deployment while maintaining structural strength and stability.

To further enhance operational efficiency and control, the ATF 40G-2 is equipped with hydraulic pilot control, ensuring precise and responsive handling during lifting operations. Tadano’s AML (Automatic Moment Limiter) system is included as standard, providing real-time load monitoring and automatic safety features, preventing overloading and optimizing stability.

With its compact design, extended boom reach, advanced hydraulic controls, and Tadano’s reliable safety systems, the ATF 40G-2 is a versatile and efficient all-terrain crane, well-suited for light-to-medium lifting applications in tight or complex job site conditions.
