Grove GMK4100L-1

The Grove GMK4100L-1 is a 100-ton all-terrain crane, designed for maximum lifting efficiency, superior mobility, and compact operation. It features a 60-meter (197-foot) seven-section telescopic main boom, extendable to 89 meters (292 feet) with jib extensions, offering exceptional reach in a four-axle configuration. The GMK4100L-1 is powered by a Mercedes-Benz diesel engine, providing strong road performance and fuel efficiency. Equipped with Grove’s MEGATRAK™ suspension system and an advanced Crane Control System (CCS), the GMK4100L-1 delivers industry-leading maneuverability, precise lifting control, and high job site versatility.

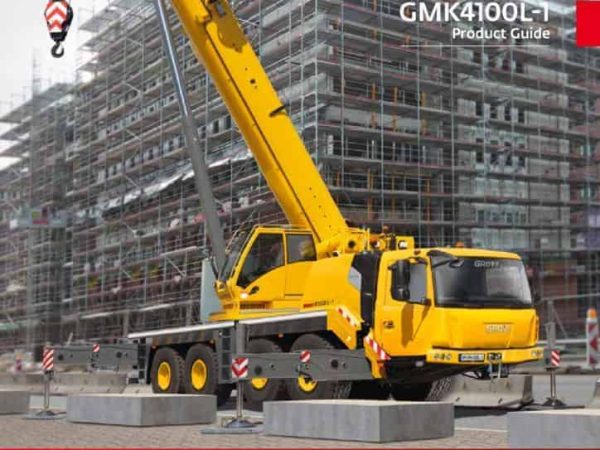

thumbnail of GMK4100L-1_spec_mt_en_201807

⬇ DOWNLOADS ⬇

somdn_product_page
yes here
Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Advertisement

Product Description

The Grove GMK4100L-1 is a high-performance 100-ton all-terrain crane, engineered for flexibility and efficiency in construction, infrastructure, and industrial projects. As an upgraded version of the GMK4100L, this model features enhanced load charts, reduced operating weight, and improved mobility, making it one of the most powerful four-axle all-terrain cranes on the market.

The crane’s 60-meter (197-foot) seven-section main boom provides exceptional reach, eliminating the need for jib extensions in many applications. When additional height is required, the lattice swing-away jib increases the maximum system length to 89 meters (292 feet), making the GMK4100L-1 suitable for high-elevation lifting tasks. The full hydraulic telescoping system allows for fast and precise boom extension, optimizing job site productivity.

Built for superior mobility, the GMK4100L-1 is powered by a Mercedes-Benz OM470LA six-cylinder diesel engine, delivering 320 kW (430 hp) and 2100 Nm of torque, ensuring strong performance on highways and off-road conditions. The transmission system includes an Allison fully automatic gearbox, providing smooth shifting and fuel efficiency.

The crane’s MEGATRAK™ independent hydro-pneumatic suspension system allows for all-wheel drive and all-wheel steering, significantly improving maneuverability in tight job sites. With a compact carrier width of only 2.55 meters (8.37 feet) and a turning radius of 8.05 meters (26.4 feet), the GMK4100L-1 can easily navigate confined urban or industrial workspaces.

For precise lifting control, the GMK4100L-1 is equipped with Grove’s Crane Control System (CCS), featuring an intuitive interface, customizable load charts, and real-time diagnostics. The dual hoist system provides high line pull, while the slewing system enables smooth 360-degree rotation, ensuring precise and efficient load handling.

The outrigger system offers multiple extension configurations, allowing for maximum lifting stability in various job site conditions. The crane also includes automated counterweight detection, ensuring safe and efficient lifting operations.

Inside the operator’s cab, the GMK4100L-1 provides a modern, ergonomic design with a touchscreen control panel, joystick operation, and climate control, ensuring operator comfort during long working hours. The crane’s hydraulic suspension, combined with noise-reducing cabin insulation, enhances driving comfort on long-distance travel.

With its long boom, compact four-axle carrier, advanced control system, and high lifting performance, the Grove GMK4100L-1 is a top choice for contractors requiring a strong, maneuverable, and versatile all-terrain crane, delivering efficiency, power, and precision in demanding lifting applications.
