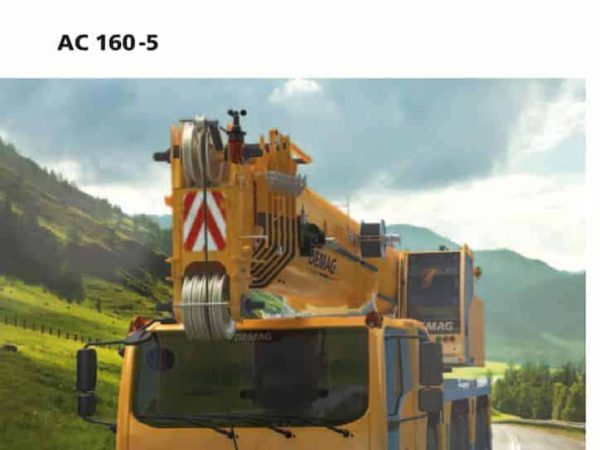

Demag AC160-5
The Demag AC 160-5 stands out in its category for its unmatched compactness, boasting a slender width of just 2.75 meters and an overall length of 14.51 meters. This design significantly undercuts the dimensions of its competitors, which typically exceed three meters in width. Its compact stature, combined with a sophisticated 5-axle steering system that includes independent rear axle steering and dynamic launch control, empowers the AC 160-5 to access and maneuver in tight spaces where its larger counterparts might falter.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The Demag AC160-5, a technologically advanced all-terrain crane, features a comprehensive suite of specifications designed for maximum efficiency and versatility. Equipped with a powerful Euromot 4/Tier 4F compliant Scania DC13 diesel engine, it delivers 368 kW (500 HP) at 2100 rpm, with a torque of 2373 Nm at 1300 rpm. This crane ensures operational excellence with a fuel tank capacity of 480 liters for diesel and an additional 60 liters for AdBlue.
The AC160-5’s transmission system is the AS12INT ZF AS-Tronic, offering an automated gearbox with 12 forward speeds and 2 reverse speeds, including an integrated hydraulic retarder for smooth control. Its 10 x 6 x 10 axle configuration includes five axles with axles 2, 4, and 5 being driven and featuring selectable transverse locks, along with a selectable longitudinal lock on axle 4, providing optimal maneuverability.
Hydropneumatic suspension across all axles, which are hydraulically lockable, combined with a dual-circuit steering system and independent rear axle steering, enables the crane to adapt to various terrain conditions easily. The crane is fitted with 385/95 R25 (14.00R25) tires, enhancing its stability and mobility.
For operator comfort and convenience, the carrier cab is spaciously designed with a range of features including adjustable seating, powered door windows, and preparation for radio installation. The superstructure of the AC160-5 boasts a telescopic boom extending from 12.4m to 68m, with a maximum capacity of 76.6 tons, supported by a counterweight of 32.6 tons.
Safety and operational efficiency are heightened by the crane’s innovative control system and operator aids, including the IC-1 system with an integrated electronic load moment indicator, providing real-time operational data to ensure safe lifting operations. The crane cab is designed for maximum comfort, featuring a variable tilt of up to 16° and is equipped with engine-independent heating for added comfort.
This detailed overview highlights the AC160-5’s blend of power, precision, and technology, making it a highly capable crane for a wide range of lifting tasks.
Technical Details | Metric | Imperial |
---|---|---|
Capacity class | 160 t | 180 US-tons |
Main boom length | 68 m | 223.1 ft |
Maximum system length | 95 m | 311.7 ft |
Maximum counterweight | 46,0 t | 50.6 US-tons |
Overall length | 14,51 m | 47,6 ft |
Carrier length | 12,61 m | 41,4 ft |
Turning radius over cabin /all axle steered | 12,68 / 11,28 m | 41.6 / 37.0 ft |
Carrier engine | 368 kW | 500 hp |
Maximum travel speed | 85 km/h | 53 mph |
Drive chain (optional) | 10 x 6 x 10 (10 x 8 x 10) | 10 x 6 x 10 (10 x 8 x 10) |
Tyres | 14.00 (16.00 / 20.5) | 14.00 (16.00 / 20.5) |
Maximum gradeability | 64% | 64% |
