Kato KA1000

The Kato KA-1000 is a 100-ton telescopic crawler crane designed for heavy lifting applications. It features a four-section main boom extending up to 45 meters, an optional super lifting (SL) jib, and a powerful Nissan diesel engine. The crane offers smooth operation, high stability, and efficient transportability, making it an excellent choice for construction and infrastructure projects.

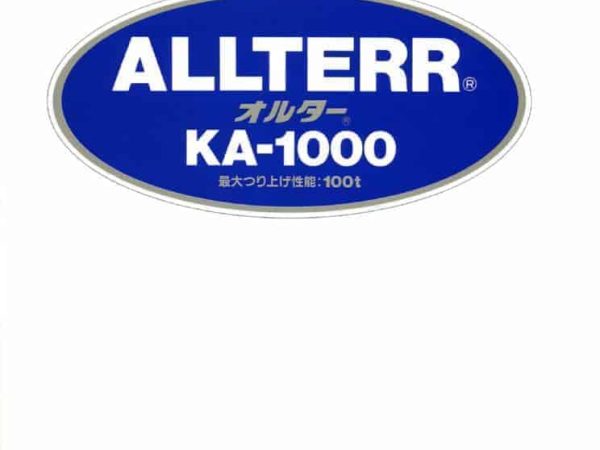

thumbnail of KA1000 catalog ja v0103005

⬇ DOWNLOADS ⬇

somdn_product_page
yes here
Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Advertisement

Product Description

The Kato KA-1000 is a 100-ton capacity telescopic crawler crane, developed to deliver superior lifting performance, mobility, and stability. Built with a robust carrier and an advanced hydraulic system, this crane ensures efficient operations in challenging terrains.

Equipped with a four-section telescopic main boom, the KA-1000 extends from 12 meters to 45 meters, offering versatile lifting capabilities. The super lifting (SL) jib option further enhances the crane’s reach, extending up to 26 meters for additional lifting height and flexibility. The crane’s maximum rated lifting capacity is 100,000 kg at a 2.8-meter radius, ensuring reliable handling of heavy loads.

The carrier is powered by a Nissan RH10 diesel engine, delivering 450 PS at 2,200 rpm and a maximum torque of 160 kg·m at 1,400 rpm, providing strong and efficient performance. The hydrostatic transmission system with six forward and reverse gears ensures smooth mobility and control. The crane’s hydraulic system is equipped with ACS (Automatic Crane System) safety features, including overload protection, automatic boom angle control, and anti-tipping measures to ensure safe and precise operation.

For transportability, the KA-1000 features a compact design with an overall length of 10,930 mm and a width of 2,750 mm, allowing for easier transport and site accessibility. The wide crawler track system provides excellent ground stability, while the hydraulic retractable tracks allow adjustments for better maneuverability.

With its powerful lifting performance, advanced safety features, and superior stability, the Kato KA-1000 is an ideal solution for demanding lifting applications, including bridge construction, infrastructure projects, and heavy industrial applications.

1 review for Kato KA1000

  1. Ancilla

    The Japanese content makes it difficult to read. Is there a English copy of the specifications

    • cranepedia

      Hi Sorry, there isn’t a Japanese version of the load chart available for this crane.
