Ivanovets KC-45717K-1

Truck-Mounted Crane

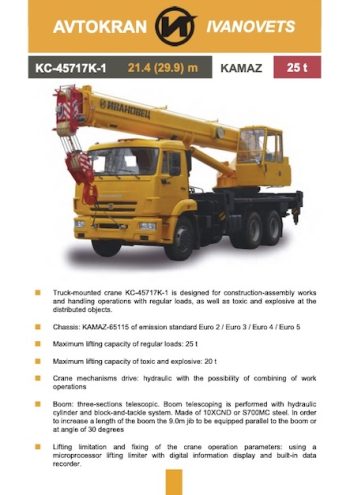

The Ivanovets KC-45717K-1 is a dynamic 25-ton truck-mounted crane, specifically designed for complex construction-assembly tasks and handling both regular and hazardous materials such as toxic and explosive loads. It is mounted on the robust KAMAZ-65115 chassis and features a three-section telescopic boom made from high-grade steel. The crane is equipped to operate in diverse environments, offering flexibility with its additional 9-meter jib that can be positioned parallel to the boom or at a 30-degree angle for extended reach.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-45717K-1 crane has a maximum regular load capacity of 25 tons and can handle up to 20 tons of hazardous materials, making it highly versatile for various industrial applications. This capacity is especially beneficial for projects that require the transportation and manipulation of sensitive or dangerous substances.

Chassis and Mobility

Chassis: Built on a KAMAZ-65115 with a 6×4 axle configuration, it adheres to various emission standards (Euro 2 to Euro 5), ensuring compliance with environmental regulations across multiple regions.
Travel Speed: The crane can travel at speeds up to 60 km/h, allowing for efficient movement between and within job sites.

Boom and Jib Configuration

Boom: Features a three-section telescopic design that extends from 9.0 meters to 21.0 meters, fabricated from either 10XCND or S700MC steel, known for their strength and durability.
Jib: A 9.0-meter jib enhances the crane’s functionality, increasing the maximum lifting height to 29.9 meters when deployed. The flexibility to adjust the jib angle up to 30 degrees enables optimal positioning for specific lifting tasks.

Safety and Control Systems

The crane includes a microprocessor-controlled lifting limiter with a digital display and a built-in data recorder. This system enhances operational safety by monitoring and regulating lifting parameters, ensuring stability and precision during operations.

Operational Efficiency

Lifting Speeds: Capable of a maximum lifting speed of 35.0 meters per minute, with precision load-lowering at 0.2 meters per minute.
Slewing Speed: The crane achieves a slewing speed ranging from 0.3 to 1.7 rotations per minute, providing smooth and controlled maneuverability for various lifting angles.

Physical Dimensions and Weight

Dimensions: The overall dimensions are 11,000 mm in length, 2,550 mm in width, and 3,900 mm in height.
Gross Weight: With the jib attached, the crane weighs approximately 20.9 tons, facilitating stable and balanced operations across different terrains.

Overall, the Ivanovets KC-45717K-1 is engineered to meet the rigorous demands of modern construction sites, providing reliable performance, safety, and versatility, especially in handling hazardous materials.
