Sany Palfinger SPS 8000

Sany Palfinger SPS 8000 is an 8mt rated truck-mounted crane.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

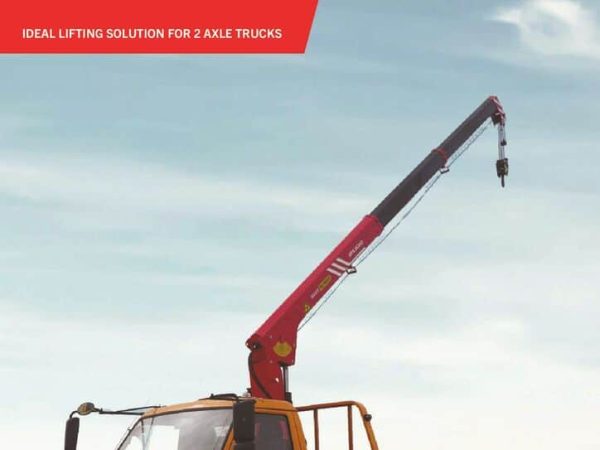

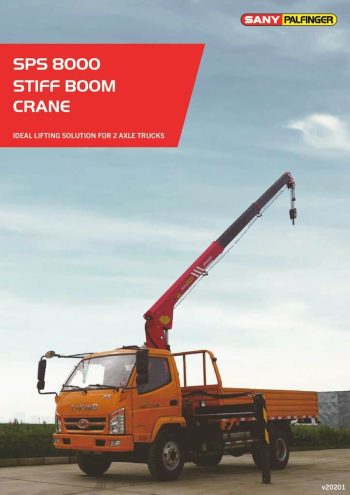

thumbnail of SPS8000_brochure_en
SPS 8000 | Brochure | EN
thumbnail of SPS8000_spec_mt_ch
SPS 8000 | Metric | CH

Product Description

Basic Data SPS 8000A SPS 8000B
Rated Lifting Moment 8 mt 8 mt
Rated Lifting Capacity 3200 kg (2.5 m) 3200 kg (2.3m)
Max. outreach 7.8 m 10.2 m
Max. lines of the hook 4 4
Slewing angle Continuous Continuous
Boom raising angle 0 ~ 75° 0 ~ 75 °
Max. lifting height (the measurement from the ground after the outriggers are fully extended) 9.8 m 12.5 m
Length of the boom system (retracted) 3.4 m 3.5 m
Length of the boom system (fully extended) 8.0 m 10.4 m
Boom sections 3 4
Outrigger span (fully extended) 4400 (mm) 4400 (mm)
Recommended flow rate 30 – 40 L/min 30 – 40 L/min
Operating pressure 25 Mpa 25 Mpa
Recommended oil tank capacity 100 L 100 L
Crane moment (dynamic) 103.1 kNm
10.5 mt
101.3 kNm
10.3 mt
Torsional moment (dynamic) 8.4 kNm
0.9 mt
8.4 kNm
0.9 mt
Crane Weight 1200 kg (Floor Control) 1300 kg (Floor Control)
