Ivanovets KC-35714K-2

Truck-Mounted Crane

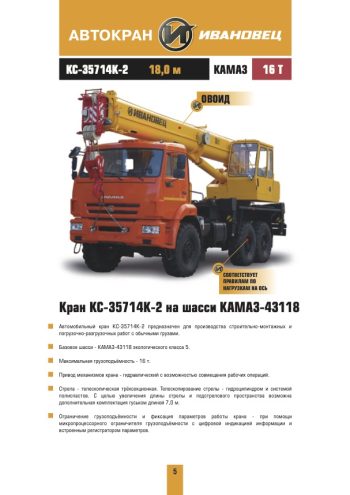

The Ivanovets KC-35714K-2 is a powerful 16-ton truck-mounted crane designed for a wide range of construction, assembly, and loading tasks. It is mounted on a robust KAMAZ-43118 chassis and features a three-section telescopic boom that extends up to 18 meters, making it suitable for operations requiring extensive reach and precision. This model is equipped to handle both regular and potentially hazardous materials, enhancing its versatility in various industrial settings.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-35714K-2 offers a maximum lifting capacity of 16 tons. It is well-suited for handling standard loads as well as specialized materials, making it a versatile choice for projects that involve diverse requirements.

Chassis and Mobility

Chassis: Built on a KAMAZ-43118 chassis with a 6×6 drive configuration, it meets Euro 5 emission standards. This robust base ensures excellent stability and mobility across different terrains.
Engine: The crane is powered by a KAMAZ 740.705-300 engine, providing 221 kW (300 horsepower), which ensures powerful performance necessary for demanding lifting operations.

Boom and Jib Configuration

Boom Length: The boom extends from 8.0 meters to 18.0 meters, allowing substantial reach and flexibility for various lifting tasks.
Jib Option: A 7.0-meter jib can be equipped to extend the maximum lifting height to 25 meters, providing additional reach and flexibility for complex lifting operations.

Safety and Control Systems

Lifting Limiter: The crane features a microprocessor-controlled lifting limiter with a digital display and a built-in data recorder. This system enhances operational safety by monitoring and regulating load and operation parameters, ensuring stability and precision during lifting.

Operational Specifications

Lifting Speeds: Offers a range of lifting speeds from 0.2 to 7.5 meters per minute, with a maximum speed for hook lifting at 35.0 meters per minute.
Slewing Speed: Rotates at a rate of 0.3 to 2.4 rotations per minute, providing smooth and controlled operation.
Travel Speed: Capable of reaching speeds up to 60 km/h, facilitating quick and efficient movement between job sites.

Physical Dimensions and Weight

Dimensions: Measures 10,000 mm in length, 2,500 mm in width, and 3,840 mm in height.
Weight: The equipped mass with the main boom is 19.13 tons, which increases slightly to 19.53 tons with the jib attached.

Overall, the Ivanovets KC-35714K-2 is engineered for high performance and reliability, capable of meeting the demands of various construction environments with its advanced lifting capabilities and safety features.
