AS Manutention build bridge with new Liebherr LTM 1750-9.1

liebherr ltm1750 9 1 as manutention 01 300dpi

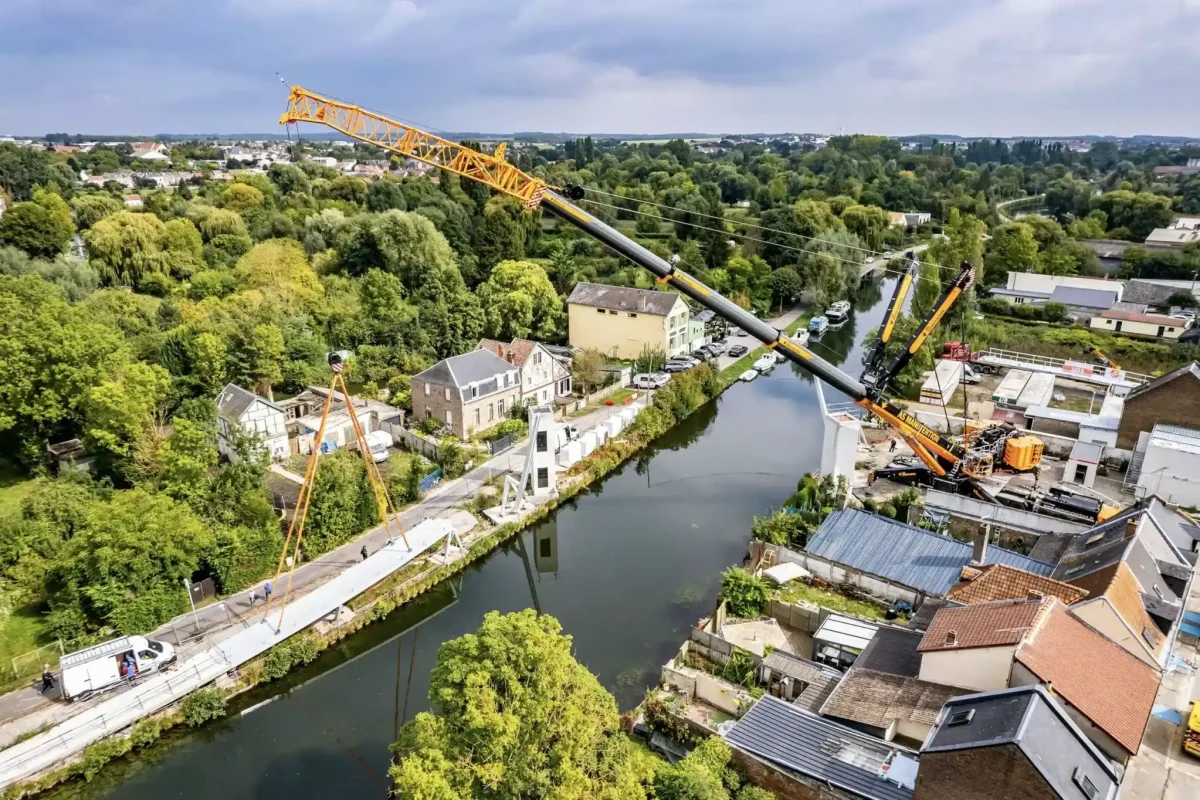

  • AS Manutention’s new Liebherr LTM 1750-9.1 mobile crane installs pedestrian bridge in  Amiens
  • New division – AS Manutention invests in 800 tonne heavy duty crane

Job successfully completed in Amiens, France – a new LTM 1750-9.1 from AS Manutention recently installed a pedestrian bridge. The pedestrian bridge was completed after just two days at the site. The investment in this Liebherr heavy duty crane with a lifting capacity of 800 tonnes,  sees AS Manutention create a new division – ASM Heavy Lift.

“The LTM 1750-9.1 features particularly high lifting capacities, the very latest technology and enormous variability in use”, says Sébastien Aouni, Managing  Director of AS Manutention, describing the benefits of his new crane. “We plan to use the 800-tonne crane in the chemical industry, wind power, bridge building and many other sectors.”

Challenging bridge installation job for the LTM 1750-9.1

Very little space was available for setting up the large crane. Smart set-up procedures, good planning and coordination within the team and the support of a Liebherr LTR 1060 telescopic crawler crane enabled the heavy-duty crane to be set up smoothly.

READ MORE:  Omega Morgan completes wind turbine move
liebherr ltm1750 9 1 as manutention 04 300dpi
Smart set-up procedures coupled with good planning and coordination within the AS Manutention team enabled the heavy-duty crane to be set up in constricted conditions.

And at the end of the process, the Liebherr crane stood ready for action with 154 tonnes of counterweight and a 13 metre fixed jib next to the River  Somme in the Hortillonages in France, over which the new pedestrian bridge was to be installed.

liebherr ltm1750 9 1 as manutention 03 300dpi
The Liebherr 800 tonne crane was fitted with 154 tonnes of counterweight and a 13 metre fixed jib for this job.

First of all, the LTM 1750-9.1 installed caissons made of construction steel each measuring 20 metres in length and weighing around 20 tonnes. All the hoists were carried out using spreaders to minimise the pressure on the caissons.

The maximum radius for hoisting the 20-tonne caissons was a massive 57  metres.

Restricted visibility and the constricted site meant that the job was far from straightforward. The crane operator had to trust the messages he received by radio from the team for installing the caissons.  The bridge was finally in situ after just two days at the site.

First investment in this class of crane

AS Manutention ordered the heavy-duty crane with the complete range of TYV23EN equipment. Liebherr was able to add power to the LTM 1750-9.1 around two years ago using refined static calculation methods and a new luffing jib configuration. This means, for example, that the 800-tonne crane can achieve a lifting capacity of over 65 tonnes for erecting wind turbines with a hub height of 100 metres.

READ MORE:  Huisman install crane on OOS Walcheren
liebherr ltm1750 9 1 as manutention 02 300dpi
The 9-axle crane from AS Manutention installed the new pedestrian bridge in the space of just two days at the site.

“The LTM 1750-9.1 is our first investment in this class of crane. Liebherr has been a reliable partner to us since the company was founded seven years ago. All our other mobile cranes were also supplied by Liebherr”, says Sébastien Aouni.

The crane and haulage contractor is based in Biesheim in Alsace,  whilst it also has sites in Strasbourg and Amiens. In addition to opening its ASM Heavy Lift Division, the company has also established its own design office to enable it to plan and complete projects precisely.  The job carried out by the LTM 1750-9.1 in Amiens was also fully planned in advance by AS Manutention.
