Palfinger built 16 customised platforms for tunnel maintenance

11 pa1500 eurotunnel 61c307b6

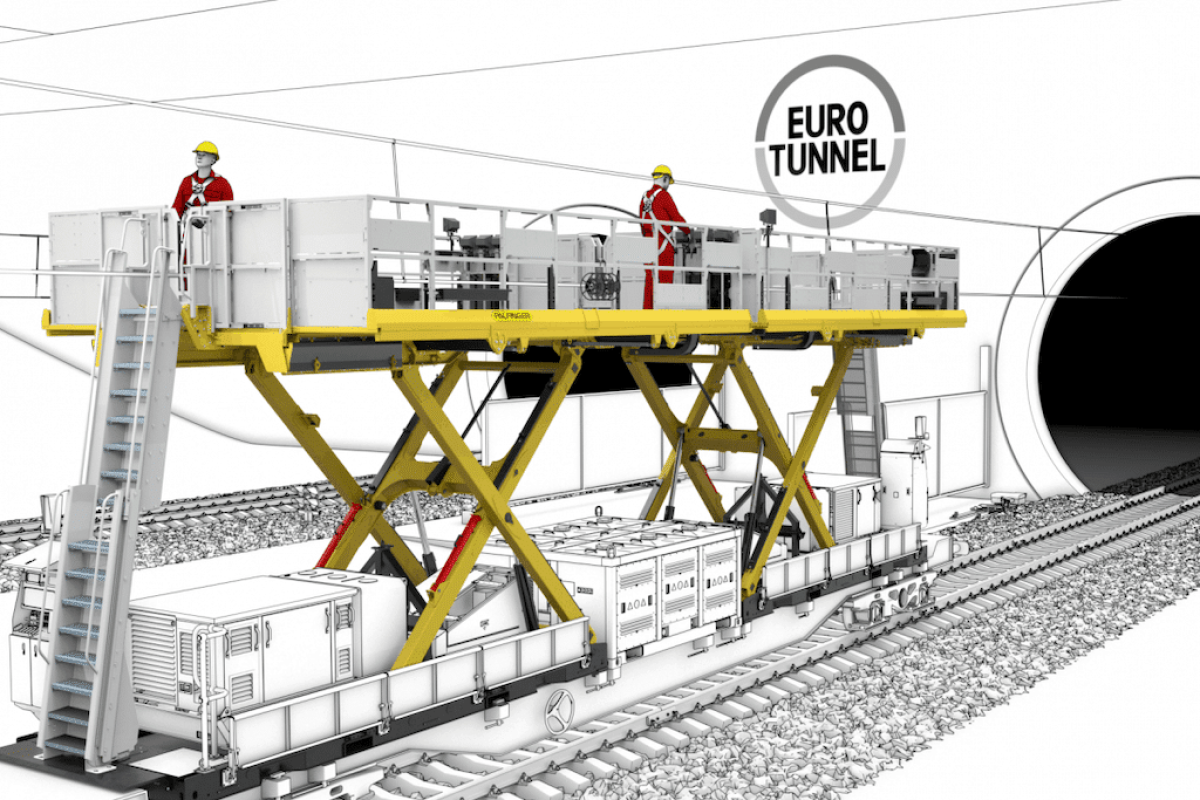

The Palfinger PA1500 platform was designed and built by Palfinger Rail for its UK partner GOS Tool Engineering. Each unit employs a single scissor mechanism to raise or lower the six-metre long platform, which has an overall width of 2.9 metres that can be extended to 4.5 metres by its 1.6-metre lateral slide-out extension. The platform capacity is 1,500kg.

The platforms have been designed on a modular basis for mounting on a range of different chassis but will typically operate as a double unit on a low riding rail wagon. In this configuration, the two platforms can be operated independently or simultaneously as a single unit, by selecting the synchronous operation mode on the remote controller.

11 pa1500 eurotunnel 1 23e7acaa
The 1.6-metre lateral slide-out extensions take the platform width from 2.9 to 4.5 metres.

The tunnel is currently having a new high voltage DC power line installed to transfer power between the UK and France. A risk assessment carried out by Eurotunnel found that the power line was most likely to be damaged by a crane or an access platform during routine maintenance work and thus commissioned a custom made solution that would carry out the work with fewer risks.

READ MORE:  ConExpo 2020 to continues amidst Coronavirus outbreak

In addition to the PA1500 platforms, the order also includes two PKR 800 railway cranes, six PR 220 cranes with BB 29 and BB 49 work platform attachment, two PA 200 platforms and other equipment.
