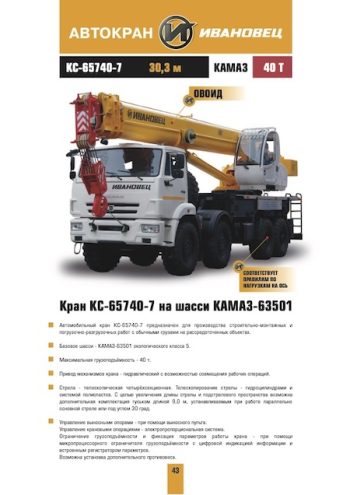

Ivanovets KC-65740-7
The Ivanovets KC-65740-7 is a powerful mobile crane designed for heavy construction and loading tasks. Mounted on a robust KAMAZ-63501 chassis with an 8×8 wheel configuration, this crane features a four-section telescopic boom extending up to 30.3 meters and includes a 9.0-meter jib, enhancing its operational reach. It boasts a maximum lifting capacity of 40 tons, making it suitable for large-scale projects.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The KC-65740-7 crane is engineered to handle a variety of tasks on dispersed construction sites, capable of lifting both standard and heavy loads with high precision. It incorporates advanced hydraulic mechanisms that enable simultaneous multiple operations, increasing efficiency and reducing operation time.
Chassis and Engine
The crane is built on a KAMAZ-63501 chassis known for its stability and durability. It is powered by a KAMAZ 740.715-320 engine delivering 235 kW (320 hp), ensuring strong performance under various operational conditions. The crane’s ability to travel at speeds up to 60 km/h allows for quick and efficient relocation, making it ideal for projects requiring frequent movement between sites.
Lifting Capabilities
With a maximum load capacity of 40 tons and a load moment of 120 tm, the KC-65740-7 is highly capable in a range of lifting tasks. The telescopic boom can be extended from 10.1 meters to 30.3 meters, with the additional jib extending the maximum lifting height to 39.0 meters. It features a lifting speed range of 0.2 to 5.1 m/min and a maximum hook speed of 38 m/min. The crane supports a slew rate of 0.3 to 1.0 rpm, providing precise maneuverability for complex lifting operations.
Safety and Operational Control
The crane includes a microprocessor-based load limiting system with digital display and an integrated recorder of operational parameters, enhancing safety by preventing overloading and ensuring stable operation. It also features an electro-proportional control system for crane operations and remote-controlled outriggers for improved operational safety and flexibility.
Dimensions and Transportability
In its transport configuration, the KC-65740-7 measures 11800 mm in length, 2550 mm in width, and 4000 mm in height, with an equipped mass of 26.13 tons (27.13 tons with the jib). The design ensures compliance with road transport regulations, facilitating legal and safe transportation on public roads.
Overall, the Ivanovets KC-65740-7 combines substantial lifting power with advanced safety features and strong mobility, making it a valuable asset for demanding industrial and construction environments.
