Unic UR-1504

Unic UR-1504 is a 13.62-tonne (30,000 lbs) rated capacity truck-mounted crane with a maximum hook height of 27.8m and a maximum working radius of 24.5m.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

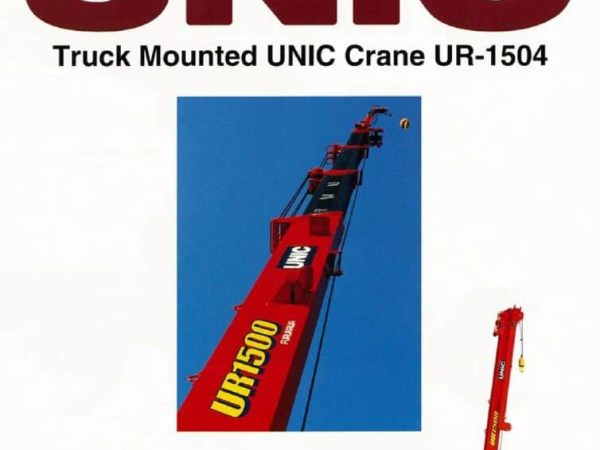

thumbnail of UR-1504_catalog_en
UR-1504 | Imperial | EN

Product Description

Model UR-1504
Max. Lifting Capacity 13,620 kg at 1.22 m
Max. Hook Height 27.8 m
Working Radius 24.50 m
Max. Boom Length 25.00 m
Min. Boom Length 7.62 m
Boom Sections 4
Boom Raising Angle Min. -10° to Max. 82°
Slewing Angle 360° Continuous
