Unic UR-V340 Series

The Unic UR-V340 series light-duty truck-mounted crane has a 3.03-tonne rated capacity and a maximum hook height between 7m to 15.9m.

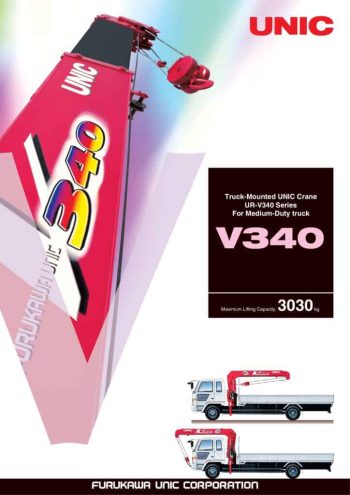

thumbnail of UR-V340_catalog_en

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

MODEL UR-V342 UR-V343 UR-V344 UR-V345 UR-V346
Max. Lifting Capacity 3,030 kg at 2.7 m 3,030 kg at 2.6 m 3,030 kg at 2.6 m 3,030 kg at 2.4 m 3,030 kg at 2.4 m
Max. Hook Height 7.0 m 9.2 m 11.4 m 13.7 m 15.9 m
Max. Working Radius 5.32 m 7.51 m 9.81 m 12.11 m 14.42 m
Max. Boom Length 5.51 m 7.70 m 10.00 m 12.30 m 14.61 m
Min. Boom Length 3.27 m 3.31 m 3.41 m 3.54 m 3.63 m
Boom Sections 2 3 4 5 6
Boom Raising Angle Min. 1° to Max. 78°
Slewing Angle 360° Continuous
