Unic UR-V290 Series

The Unic UR-V290 series light duty cargo truck has a maximum lifting capacity of 3.03 tonnes and a maximum hook height between 7.6m to 13.6m.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

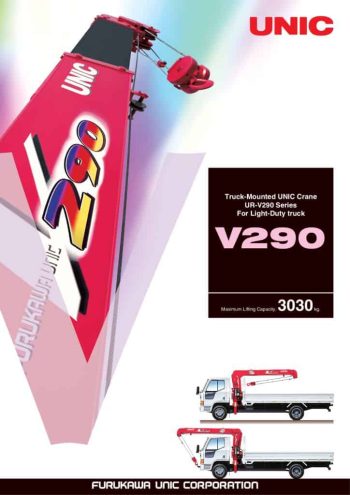

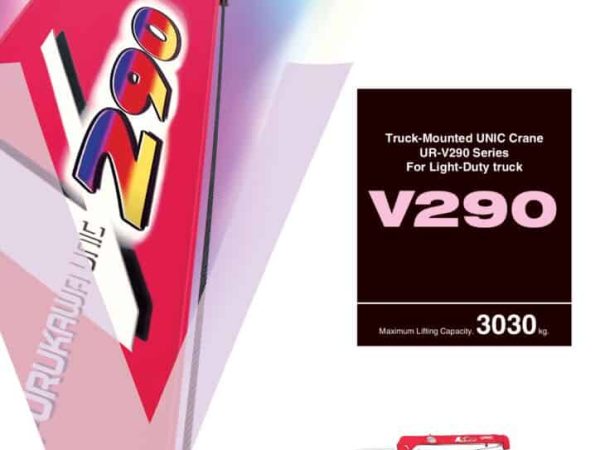

thumbnail of UR-V290_catalog_en
UR-V290 Series | EN

Product Description

MODEL UR-V293 UR-V294 UR-V295 UR-V296
Max. Lifting Capacity 3,030 kg at 1.6 m 3,030 kg at 1.6 m 3,030 kg at 1.5 m 3,030 kg at 1.5 m
Max. Hook Height 7.6 m 9.8 m 11.7 m 13.6 m
Max. Working Radius 6.43 m 8.73 m 10.63 m 12.63 m
Max. Boom Length 6.60 m 8.90 m 10.80 m 12.80 m
Min. Boom Length 2.79 m 3.17 m 3.15 m 3.25 m
Boom Sections 3 4 5 6
Boom Raising Angle Min. 1° to Max. 76°
Slewing Angle 360° Continuous
