Four-crane pick delivers new Toronto bridge

grove lift toronto bridge 1

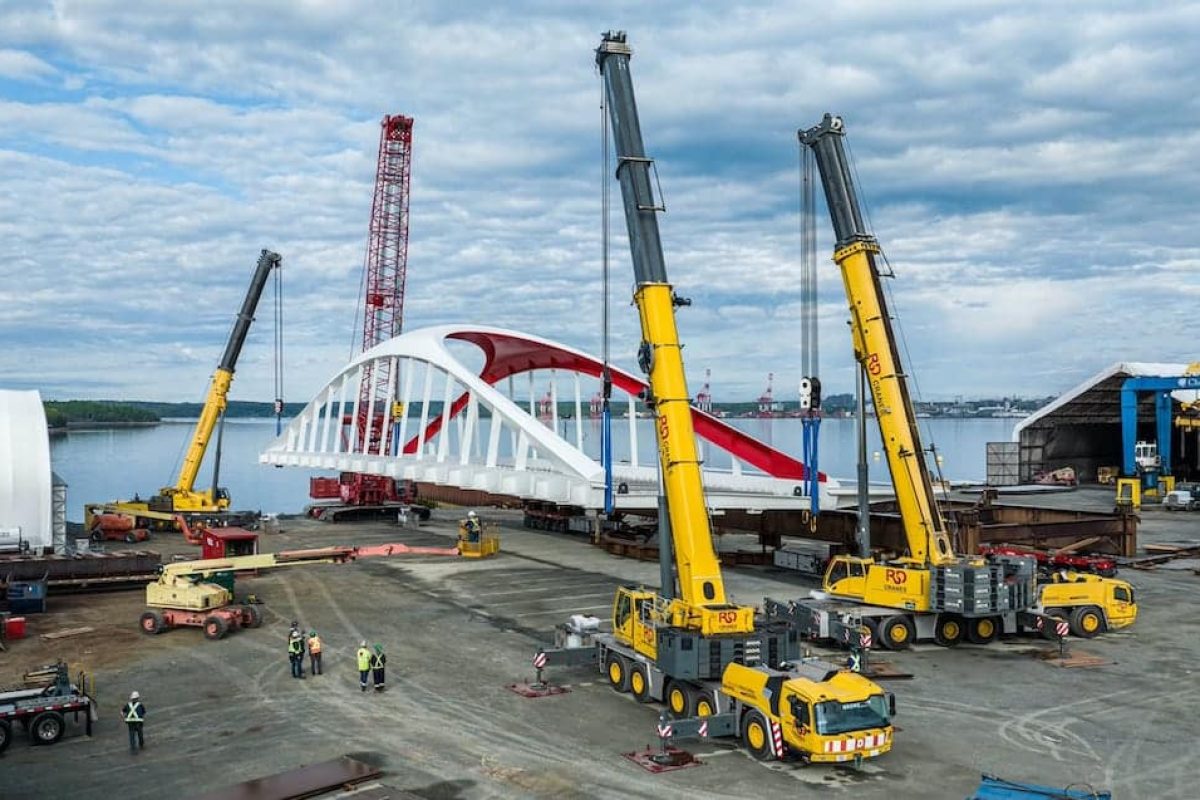

A Manitowoc Model 16000 crawler crane and three Grove all-terrain cranes combined to lift a 466.6 t bridge section onto a self-propelled transporter for later unloading and installation. The lift was performed by R&D Crane, a sister company of the bridge fabricator and part of the Nova Scotia, Canada-based Cherubini Group.

Canada’s Cherubini Bridges and Structures has completed work on the Four Signature Bridges contract for Toronto’s Port Lands project. The job wrapped up in style with the company successfully orchestrating a complex four-crane pick to get the final 466.6 t segment of the bridge loaded onto a transporter for shipment.

The lift of the 22.3 m-wide, 57.1 m-long Cherry Street North Bridge was performed by R&D Crane which — like the fabricator — is a division of Cherubini Group. It was completed using the four largest cranes in its fleet: a Manitowoc Model 16000 lattice-boom crawler, Grove GMK6400, GMK5250L, and GMK5240 all-terrain cranes.

The cranes combined to lift the structure from its supports in the yard at Cherubini’s Pleasant Street Fabrication Facility in Dartmouth, Nova Scotia, allowing a self-propelled modular transporter (SPMT) with transfer beams and a huge Cherubini-engineered turntable to take the load. The SPMT was then driven onto a barge moored alongside the site’s dedicated harborside wharf to begin its journey to Toronto.

READ MORE:  Liebherr LR 11000 with SL8F2 Boom System Improves Wind Farm Installation Efficiency

Finding room in a tight spot

The need to bring together the four cranes was an engineering solution to help ensure the bridge was positioned as smoothly as possible at its final destination, as Cherubini Group CEO, Darren Czech, explained.

“Loading the bridge sections onto the barge wasn’t the issue, as the transporters were able to pick the sections and drive straight on,” he said. “But with this particular section, and also a second one, there were space restrictions which meant we couldn’t just simply roll on and roll off the barge using the self-propelled transporters alone. Because of this, we engineered a solution that supplied the sections to the job site on a turntable structure — our giant ‘Lazy Susan.’ This allowed tugboats in Toronto to spin them around on the barge in the middle of the harbor, ideally positioning them to slot right into their final destination. So, we used the four-crane pick at our yard to make sure the section was accurately placed on the turntable ahead of shipping to Toronto.”

READ MORE:  Liebherr LR1300 aids Virginia hospital's parking garage

For the lift, one crane was positioned at each corner of the bridge, and all were configured with the main boom and a partial counterweight. The 16000 had 36 m of the boom with 134 t of rear counterweight and 27 t of car body counterweight. All three Groves maximized their outrigger deployment, with the GMK6400 working with 95 t counterweight and 20 m of the boom; the GMK5250L working with 70 t counterweight and 23.5 m of the boom; and the GMK5240 working with 44 t counterweight and 23 m of the boom.

“The lift went without a hitch, taking less than four hours,” said R&D’s GM, Rob Blois. “Although the cranes were mobilized roughly a week prior to help with planning, setting up mats, and finalizing onsite details. The key was really the planning — working out how to maintain equal weights during the lift and spreading the load to reduce ground-bearing pressure. But on the day the cranes worked very well together. We have a full fleet of Manitowoc and Grove cranes, which minimizes the mechanical and operational challenges a mixed fleet can cause.”
