Kobelco 7055

The Kobelco 7055 is a 55-ton hydraulic crawler crane with a maximum boom length of 51.82 meters and a total reach of 57.91 meters with jib. Built for efficient and precise lifting, it features a robust Mitsubishi diesel engine, powerful winches, and smooth hydraulic control. Its compact design and advanced safety systems make it ideal for a wide range of construction applications.

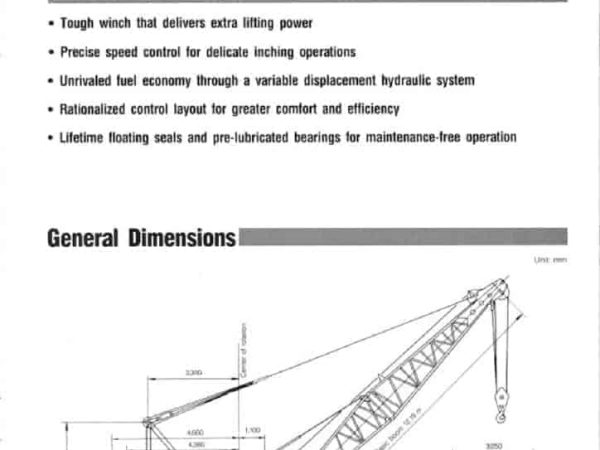

thumbnail of 7065 spec mt en

⬇ DOWNLOADS ⬇

somdn_product_page
yes here
Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Advertisement

Product Description

The Kobelco 7055 crawler crane is a 55 metric ton class hydraulic crane engineered for reliable performance and efficient operation. It is powered by a 6-cylinder Mitsubishi 6D22C diesel engine rated at 180 PS (132 kW) at 2,000 rpm, delivering a maximum torque of 70 kgf·m at 1,200 rpm. This engine is coupled with a robust hydraulic system comprising two variable displacement pumps and one fixed pump, enabling smooth and responsive control of the load hoist, boom, and swing functions.

The crane is equipped with a four-section welded lattice boom that extends up to 51.82 meters, while an optional jib provides additional lifting height, bringing the maximum total reach to 57.91 meters. The main hoist features a powerful tandem drum system driven independently by hydraulic axial piston motors, offering hoisting speeds of up to 90 m/min. The system includes spring-set multiple-disc brakes and safety pawls for reliable holding and stopping.

The swing system provides full 360° rotation at up to 3.7 rpm and uses an axial piston motor with a planetary reducer and automatic brake. The undercarriage consists of a steel-welded carbody with independently driven crawler tracks, extendable side frames, and 59 shoes per side with a width of 760 mm. The crawler drive system enables a maximum travel speed of 1.6 km/h and excellent maneuverability with a 40% gradeability.

Operator comfort and safety are emphasized with a fully enclosed, full-vision cab fitted with safety glass, adjustable seating, wipers, and ergonomic control layout. The crane integrates standard safety features including load moment limiters, hook over-hoist limiters, and optional third hoist control.

Other specifications include a 15,700 kg two-piece counterweight, standard 22 mm wire ropes, and lifting capacities of up to 55 tons with 145 kN starting and 158 kN running line pull. With precise speed control, a tough winch, and efficient hydraulic design, the Kobelco 7055 is a proven solution for mid-range lifting operations across industrial and infrastructure projects.
