Kobelco CKE800G
The Kobelco CKE800G is an 80-ton class crawler crane with a maximum boom length of 54.9 meters and fixed jib combinations reaching up to 42.7 meters plus 18.3 meters. Powered by a HINO J08E-UV engine producing 213 kW, the crane offers smooth hydraulic operation, advanced safety features, and reliable lifting performance for mid-range heavy-duty construction projects.

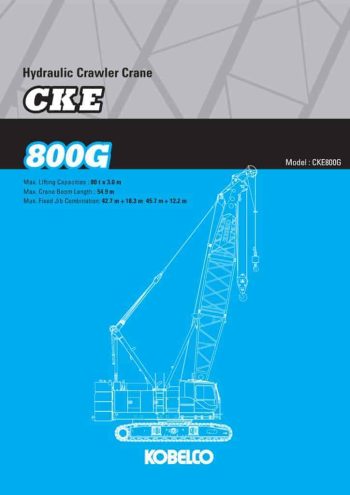

GET SPEC SHEET
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description
Designed for versatility and dependable performance, the Kobelco CKE800G crawler crane delivers up to 80 tons of lifting capacity at a 3.0-meter radius, making it well-suited for medium-scale industrial and infrastructure projects. Its crane boom ranges from 9.1 to 54.9 meters, constructed from high-tensile tubular steel with pin-connected sections for durability and ease of transport. The crane can also be configured with fixed jibs, with maximum combinations reaching 42.7 meters of boom plus 18.3 meters of jib, offering excellent flexibility in lifting tasks that demand extended reach.
The CKE800G is powered by a HINO J08E-UV six-cylinder, water-cooled, turbocharged diesel engine that delivers 213 kW at 2,100 rpm and 1,017 Nm of torque at 1,600 rpm. The engine is compliant with NRMM (Europe) Stage IIIB and US EPA Interim Tier 4 standards, providing environmentally friendly and fuel-efficient performance. Its hydraulic system uses three variable displacement piston pumps, providing smooth, precise control across hoisting, swing, and travel functions, with maximum system pressures reaching 31.9 MPa. The system is supported by a large 440-liter hydraulic tank and a 400-liter fuel tank for extended operational periods.
Hoisting operations are handled by front and rear drums with a maximum rated line pull of 78.5 kN and line speeds of 120 m/min, using 22 mm diameter wire ropes up to 220 meters (main) and 130 meters (auxiliary). The boom hoist system features a hydraulically driven drum grooved for 16 mm wire rope, providing hoisting speeds between 2 and 70 m/min. Wet-type multiple disc brakes, external drum ratchets, and optional positive free-fall brake systems ensure load handling safety.
The swing system, powered by dual hydraulic motors driving planetary reducers, delivers smooth 360-degree rotation at 4 rpm, with integrated multiple-disc parking brakes and mechanical swing locks for transport safety. Travel is controlled by independently driven hydraulic motors in each crawler assembly, achieving speeds up to 1.73 km/h and a gradeability of 40%, supported by 800 mm wide crawler shoes that distribute ground pressure at approximately 84.7 kPa.
Operator comfort and efficiency are enhanced by a fully enclosed cab equipped with air conditioning, safety glass, ergonomic high-backed seating, and user-friendly controls. Additional features include self-removal devices for counterweights and crawlers, sealed track rollers, and robust structural design for durability in demanding field conditions.
In summary, the Kobelco CKE800G combines proven engineering, advanced hydraulic control, and operator-focused design to provide efficient, safe, and reliable lifting performance for a wide range of heavy-duty lifting applications.
