Liebherr LR1160

Crawler Crane

Liebherr LR1160 was first displayed in Bauma Munich 2001. The 160-ton crawler crane was an upgrade from LR1140, which they have developed in 2000. The crane boost a total boom + jib length of 125m (55.1m boom + 69.8m jib) and also comes with three additional counterweight pieces for extra capacity to compete with 180 US ton class crawler crane in the USA.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

thumbnail of LR1160_brochure_en — Brochure, EN

thumbnail of LR1160_spec_lb_en_v2014 — Imperial, EN

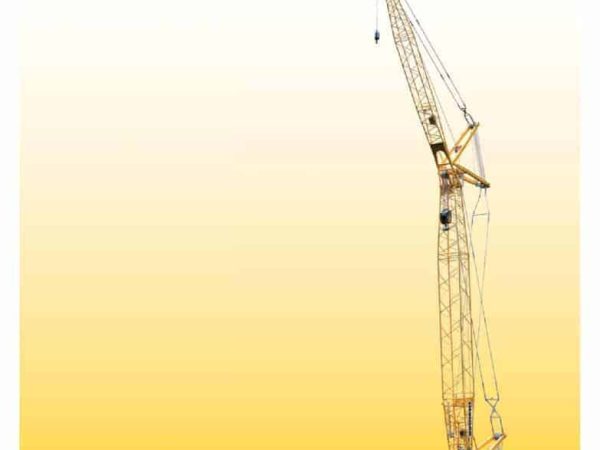

thumbnail of LR1160_spec_mt_en_v2015 — Metric, EN

Product Description

Technical Specifications

Technica Data	Metric	Imperial
Max. load capacity	160 t	400,000 lbs
at radius	3.90 m	13 ft
Main boom, lightweight/heavyweight from	20 m	65 ft
Main boom, lightweight/heavyweight up to	87 m	287 ft
Max. load torque	959 tm	6,937,906 lbs-ft
Lattice jib from	22.7 m	74 ft
Lattice jib up to	78.5 m	257 ft
Central ballast	15 t	33,069 lbs
Counterweight at superstructure	55 t	121,300 lbs
Engine power	230 kW	308 hp
