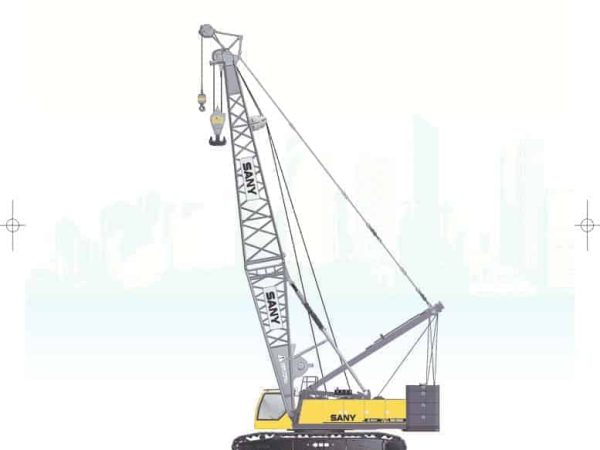

Sany SCC1500C
The SANY SCC1500C is a 150-ton capacity crawler crane engineered for heavy lifting applications. With a boom length ranging from 18 to 81 meters, a maximum boom + jib combination of up to 75 + 13 meters, and an efficient hydraulic system, it delivers excellent lifting performance, stability, and mobility. The crane is powered by a 242 kW engine and features a two-speed travel system for enhanced maneuverability.

⬇ DOWNLOADS ⬇
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Product Description
The SANY SCC1500C is a 150-ton crawler crane designed to meet the demands of construction, infrastructure, and energy projects. It features an extendable boom ranging from 18 to 81 meters, offering flexibility for various lifting operations. The boom luffing angle of 30° to 80° enables precise positioning of loads, while the optional fixed jib extends lifting capabilities further, reaching a maximum boom + jib combination of 75 + 13 meters. The jib attachment allows for optimized lifting angles of 15° and 30°, accommodating diverse job site requirements.
The SCC1500C is built with high-performance winches, delivering a rope speed of up to 125 m/min for the main and auxiliary winches and dual 24 m/min for the luffing winch. Its swing speed of 0-2 rpm provides smooth rotation, while the traveling speed of 1.2 km/h (high) and 0.6 km/h (low) ensures efficient movement on-site. With a gradeability of 30%, the crane maintains excellent stability and traction on uneven terrain.
The crane is powered by a 242 kW engine operating at 2100 rpm, ensuring optimal fuel efficiency and high performance. For transportation, the maximum transport weight of a single unit is 50.2 tons, and its compact dimensions of 10,230 × 3,470 × 3,500 mm allow for ease of transport between job sites. The average ground pressure of 0.093 MPa ensures low ground disturbance, making it suitable for various ground conditions.
The SANY SCC1500C is a versatile and powerful crawler crane, offering high lifting capacities, advanced hydraulic technology, and superior transportability. Its robust design and efficient performance make it a preferred choice for heavy lifting applications in construction, energy, and industrial projects.
