Liebherr LR1250

Liebherr has launched the new LR 1250 crawler crane to the public for the very first time at Bauma 2013.

The LR 1250 crawler crane is based on the LR 1200 and has a 250-tonne lifting capacity. It has a reinforced main boom, 95 metres luffing jib and a 32 metres fixed jib. In heavy boom configuration, the maximum length is 86 metres and in light boom configuration, the maximum length is 117 metres.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

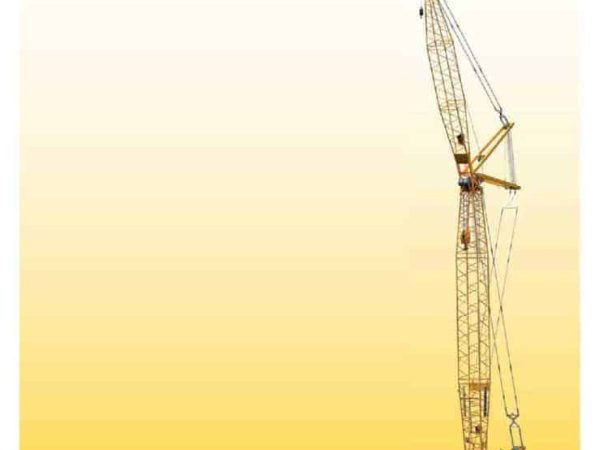

thumbnail of Liebherr LR1250 Technical Data mt
Metric, EN
thumbnail of Liebherr LR1250 Technical Data lbs
Imperial, EN

Product Description

Features of the new crawler include carbon fibre pendant straps (CFRP), which are maintenance-free and easy to handle, the company added. The LR 1250 has two crane winches, each offering a 12-tonne line pull. There is also the option of a 12-tonne free-fall winch.

The crane is driven by a 270 kW / 362 hp 6-cylinder diesel engine and complies with EU Stage IIIB / EPA Tier 4 Interim emission regulations.

The crane, including boom and counterweight, can be easily transported, a Liebherr spokesperson said, because the track width can be retracted to 5.8 m.

Additional features include the Litronic control system, which uses CAN bus technology. The load moment limitation automatically calculates the lifting capacities during operation and guarantees optimum use of the machine, the company said. The LR 1250 can also have LiDAT, a data transmission and positioning system, which provides information on the operation of the machine and fuel consumption.

Technical Data Metric Imperial
Max. load capacity 250 t 551,150 lbs
at radius 4.10 m 13 ft
Main boom, lightweight/heavyweight from 20 m 65 ft
Main boom, lightweight/heavyweight up to 86 m 282 ft
Max. load torque 1,180 tm 8,531,339 lbs-ft
Lattice jib from 20.0 m 65 ft
Lattice jib up to 95.0 m 312 ft
Central ballast 36 t 79,336 lbs
Counterweight at superstructure 82 t 181,440 lbs
Engine power 230 kW 308 hp
Driving speed 1.60 km/h 1.00 mph
