Sany SCC8260 Load Chart PDF + Specifications

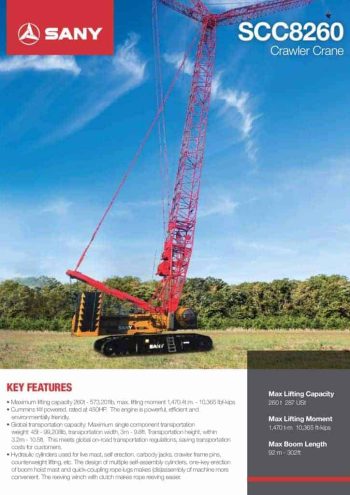

The SANY SCC8260 crawler crane, unveiled at CONEXPO-CON/AGG 2017 in Las Vegas, is designed specifically for the North American market, meeting stringent emission and transportation regulations. With a maximum lifting capacity of 260 tons (573,201 lbs) and a lifting moment of 1,470.4 t·m (10,365 ft-kips), the SCC8260 is built to handle heavy-duty lifting tasks in construction, infrastructure, and industrial sectors.

Powered by a Tier 4 Final Cummins diesel engine rated at 450 hp (336 kW) at 1,800 rpm, the SCC8260 combines strength and fuel efficiency, making it suitable for both demanding tasks and environmentally-conscious operations. The crane features a modular design for easy transportation and quick assembly, with a maximum transport weight of 45 tons (99,207 lbs) per component. Its transport dimensions—43’8” (13,320 mm) in length, 9’10” (3,000 mm) in width, and 10’6” (3,200 mm) in height—comply with global road transportation regulations, helping reduce transportation costs.

The SCC8260 boasts a five-section boom that extends up to 92 meters (301 feet), with the option for an additional 63-meter (206 feet) luffing jib. This provides a wide range of lifting configurations, with a maximum lifting speed of 135 m/min (410 ft/min) on the main winch and 125 m/min (383 ft/min) on the auxiliary winch. The crane features quick boom luffing at 132 m/min (433 ft/min) and a maximum slewing speed of 1.8 rpm, allowing for fast, precise lifting operations.

Designed for efficiency, the SCC8260 includes a hydraulic system for self-assembly, making setup and disassembly more convenient. Hydraulic cylinders assist with the live mast, carbody jacks, crawler frame pins, counterweight lifting, and quick-coupling of rope lugs. The reeving winch with a clutch simplifies rope reeving.

With a gradient capability of 30%, a minimum turning radius of 9.7 meters (31’10”), and a traveling speed of up to 1.0 km/h (0.62 mph) in high mode, the SCC8260 offers excellent mobility across rough terrain. The outrigger system fully extends and retracts in under 25 seconds, with lifting and lowering completing in just 30 seconds, ensuring quick setup on-site.

The SCC8260 is built to meet the heavy lifting demands of modern infrastructure projects, with an innovative design that ensures powerful performance, safety, and efficiency. Whether for heavy construction or industrial applications, the SANY SCC8260 crawler crane delivers exceptional reliability and versatility.
