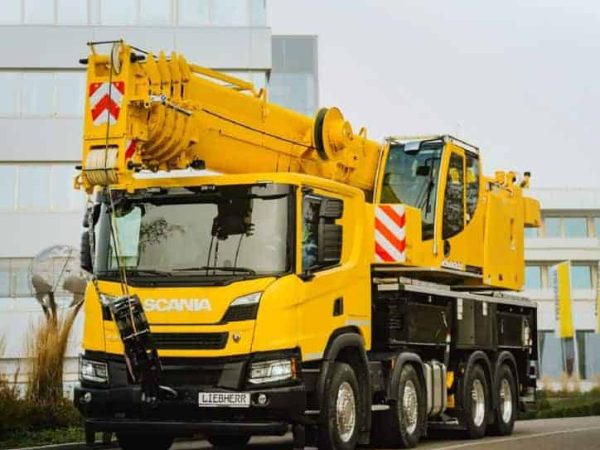

Liebherr LTF 1060-4.1

The Liebherr LTF 1060-4.1 is a 60-ton class truck-mounted crane designed to deliver powerful lifting capabilities while maximizing mobility and operating economy. Built on a commercial four-axle truck chassis, the crane benefits from reduced acquisition and operating costs compared to traditional all-terrain cranes, while still maintaining excellent lifting performance.

The crane’s telescopic boom extends from 10.3 meters to 40 meters, comprising a base section and four telescopic sections with a reliable hydraulic cylinder-and-ropes system. For extended reach, a double folding jib up to 16 meters can be added, offering various offset angles, thereby achieving a maximum hoist height of 56 meters and a maximum working radius of 48 meters. This makes the LTF 1060-4.1 suitable for applications ranging from industrial and commercial construction to quick-response utility work.

Its superstructure is powered by a Liebherr four-cylinder diesel engine rated at 145 kW, and includes the LICCON2 control system, enabling intuitive crane operation, real-time monitoring, and integrated safety functions. The engine’s fuel efficiency and emissions compliance (Stage IIIA/Tier 3) ensure it meets the environmental and operational demands of modern job sites.

The carrier chassis supports a maximum driving speed of 85 km/h and is fully road-legal without the need for special transport permits in many regions. The crane’s compact dimensions and tight turning radius improve access to urban and restricted spaces, while the hydraulic outriggers provide four-point stabilization for lifting on uneven ground.

With the capacity to carry substantial counterweight onboard, the LTF 1060-4.1 minimizes setup time and reduces the need for auxiliary transport. Its truck-mounted nature makes it highly efficient for jobs requiring quick mobilization across long distances.

Overall, the Liebherr LTF 1060-4.1 offers an effective solution for customers looking for a blend of lifting power, roadability, and cost efficiency. It is especially appealing for companies operating in regional lifting services or requiring versatile cranes for fast-changing site requirements.
