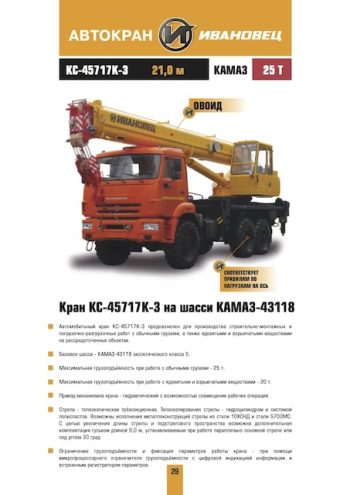

Ivanovets KC-45717K-3

Truck-Mounted Crane

The Ivanovets KC-45717K-3 is a robust mobile crane equipped to handle both standard and hazardous materials with a maximum lifting capacity of 25 tons for normal loads and 20 tons for hazardous substances. This model is mounted on a KAMAZ-43118 chassis and features a three-section telescopic boom extendable up to 21 meters, making it highly effective for various construction and loading tasks.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Designed for diverse construction and material handling tasks, the KC-45717K-3 crane excels in environments requiring the movement of both standard and hazardous materials. It incorporates a hydraulic drive system that facilitates the simultaneous operation of multiple functions, enhancing operational efficiency and safety.

Chassis and Engine

This crane model utilizes a sturdy KAMAZ-43118 chassis with a 6×6 wheel formula, providing enhanced stability and mobility across different terrains. It is powered by a KAMAZ 740.705-300 engine, which delivers 221 kW (300 hp), ensuring strong performance and reliability. The crane’s ability to travel at speeds up to 60 km/h allows for efficient repositioning on job sites.

Lifting Capabilities

The KC-45717K-3 features a telescopic boom that can be extended from 9.0 meters to 21.0 meters, and it includes a 9-meter jib to further increase its operational range. The crane offers a maximum lifting height of 29.9 meters with the jib and can lift up to 25 tons for regular loads and 20 tons when handling hazardous materials. The nominal speed for lifting operations ranges from 0.2 to 6.1 m/min, with a maximum hook speed of 35 m/min. Additionally, the crane supports a slew rate of 0.3 to 1.9 rpm.

Safety and Control

Safety is paramount with the KC-45717K-3, equipped with a microprocessor-based load limiting system that features digital display and integrated operation logging. This advanced system ensures adherence to safety standards and operational precision, preventing overloads and enhancing overall site safety.

Dimensions and Transportability

The crane’s transport dimensions are 11000 mm in length, 2550 mm in width, and 3980 mm in height, with an equipped mass of 20.52 tons (21.02 tons with the jib). These dimensions and weight distributions are optimized to meet road transport regulations, ensuring it can be legally and safely transported across public roads.

Overall, the Ivanovets KC-45717K-3 is a versatile and powerful crane that provides reliable performance and enhanced safety features, suitable for a wide range of industrial and construction applications, particularly where hazardous materials are involved.
