The XCMG QAY160 is an advanced 160-ton all-terrain crane, engineered for high performance and versatility in lifting operations across various environments. It integrates robust specifications such as a powerful 390 kW engine, a comprehensive lift capacity, and high mobility with a maximum speed of 71 km/h. With its extensive reach and flexible configurations, this crane is designed to meet the demanding needs of modern construction sites, ensuring both efficiency and safety.

XCMG QAY160 All Terrain Crane


*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models


Product Description

Key Specifications

  • Lifting Capacity: The crane has a remarkable maximum lifting capacity of 160,000 kg, supported by a maximum load moment of 5282 kN.m, making it suitable for heavy-duty tasks.
  • Boom and Jib Configuration: Features a main boom length of 60 meters, complemented by a jib length of 20 meters, allowing for a maximum lifting height of 80 meters when the jib is fully extended.
  • Engine Performance: Powered by an OM460LA.III/3 engine, it outputs 390 kW, facilitating strong and reliable lifting operations.

Mobility and Dimensions

  • Dimensions: The crane dimensions stand at 14800 mm in length, 3000 mm in width, and 4000 mm in height, optimized for various site conditions.
  • Driving Capabilities: It achieves a travel speed of up to 71 km/h and features a significant gradeability of 48%, suitable for maneuvering in challenging terrains.

Operational Efficiency

  • Hoisting Speeds: Offers maximum hoisting speeds of 120 m/min for the main winch and 110 m/min for the auxiliary, ensuring quick and efficient lifting operations.
  • Swing and Steering: The crane’s swing speed ranges from 0 to 2 r/min, coupled with advanced steering capabilities that enhance its operational flexibility.

Safety and Control

  • Safety Features: Includes comprehensive safety measures such as synchronized extending and retracting of outriggers and jib, ensuring stability and security during operations.
  • Fuel and Hydraulic Systems: Equipped with an 80-liter hydraulic system and efficient fuel consumption metrics, promoting long operational periods with reduced downtime.

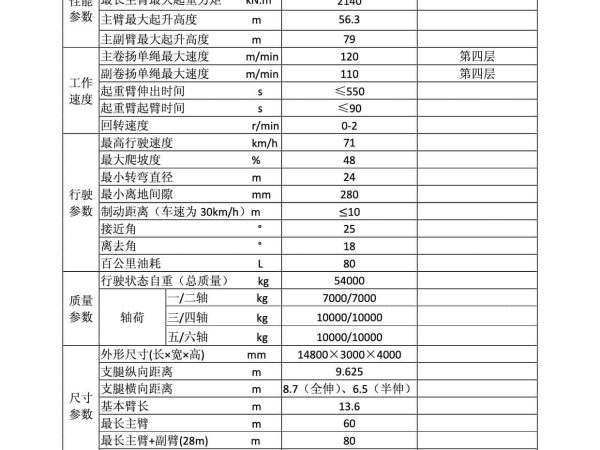

Technical Parameters

  • Weight Distribution: The crane’s total weight is 54,000 kg, with an even axle load distribution, which is crucial for both transportation and operational stability.
  • Extended Features: Additional features include variable jib offsets at 0°, 15°, and 30°, enhancing its adaptability to different lifting conditions.

The XCMG QAY160 all-terrain crane stands out for its combination of high lifting capacity, mobility, and operational control, making it a valuable asset for extensive lifting operations in diverse and challenging environments.
