Manitowoc 4100W Series 1

Crawler Crane

The Manitowoc 4100W Series 1 Crawler Crane is a highly dependable and robust machine, recognized for its substantial 230 US ton lifting capacity which can be enhanced to 300 US tons with a ringer attachment. Known for its operational resilience and versatility, this crane is a preferred choice for heavy-duty tasks in environments requiring significant lift capabilities, such as large-scale construction and industrial projects.

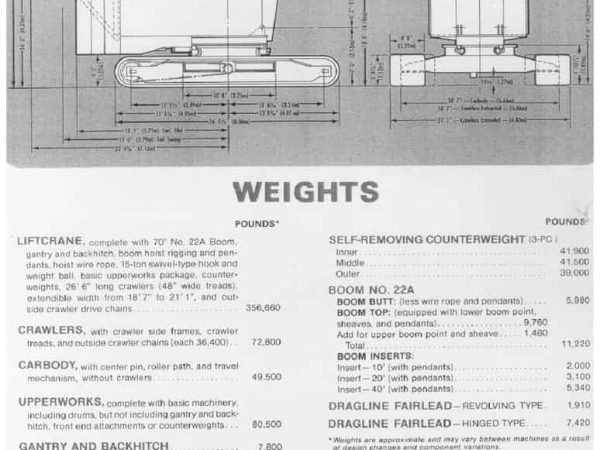

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Power Plant Options

Basic Engine: Powered by a Cummins NTA-855 Diesel engine, providing 333 horsepower at 2,000 RPM, designed to offer robust performance and reliability.
Optional Engines: Additional power options include the G.M. 12V-71N Diesel and Caterpillar D343-TA Diesel engines, which offer up to 364 horsepower, suitable for the most demanding tasks.
Fuel Capacity: The crane is equipped with a 315-gallon fuel tank, supporting extended operation periods with fewer interruptions for refueling.

Crane Specifications and Capacities

Liftcrane Configuration: Comes complete with a 70′ No. 22A Boom, self-removing counterweight system, and basic upperworks machinery, including a 15-ton swivel-type hook and weight ball.
Boom Details:
- Boom No. 22A: Offers modular configuration with inserts available in 10′, 20′, and 40′ lengths, providing flexibility in reach and capacity. The boom top is equipped with lower boom point sheaves and pendants for complex lifting scenarios.
Counterweight: Features a three-piece self-removing design for easy setup and tear down, enhancing operational efficiency.

Additional Equipment and Enhancements

Dragline Fairlead: Available in revolving and hinged types, designed to support precise and stable line management during operations.
Boom Inserts and Accessories: Enhance the crane’s flexibility and load management capabilities, making it suitable for a variety of lifting tasks.

Safety and Operational Features

Gantry and Backhitch: These components are essential for the structural integrity and stability of the crane during heavy lifts.
Crawlers: Equipped with crawler side frames and 26’6″ long crawlers that ensure stability and ease of movement on various terrains.

In conclusion, the Manitowoc 4100W Series 1 crawler crane is engineered for superior performance and reliability, making it a powerhouse for lifting operations in demanding environments. Its extensive configuration options, powerful engine choices, and advanced safety features solidify its status as a go-to crane for heavy lifting needs.
