Hitachi CX500W
The Hitachi CX500W is a 50-ton lattice boom truck crane designed for smooth and responsive operation, featuring advanced hydraulic controls and a high-efficiency winch system. With a maximum hoisting speed of 100 m/min and a rope capacity of 215 meters, it excels in heavy lifting and precise load handling. The crane is equipped with ergonomic controls, including fingertip electric grips for delicate inching operations, ensuring operator comfort and precision.

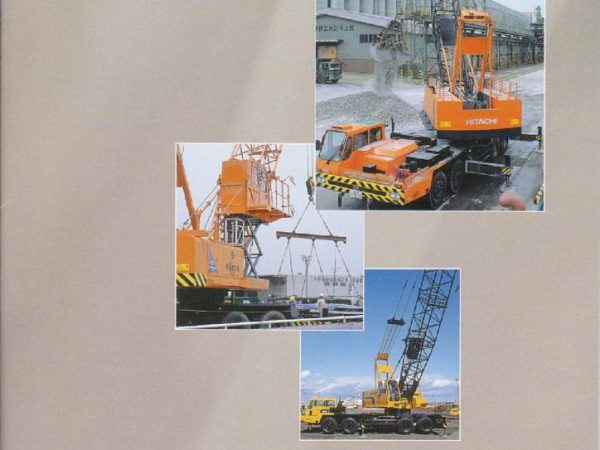

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The Hitachi CX500W is a versatile and powerful 50-ton lattice boom truck crane designed for a wide range of heavy lifting applications, particularly in port cargo handling and construction projects. Its highly responsive hydraulic systems and user-friendly controls provide smooth operation, allowing operators to handle heavy loads with ease and precision.
The CX500W features a winch system capable of a maximum hoisting speed of 100 meters per minute, enabling efficient load lifting and positioning. The rope capacity reaches 215 meters on five layers, with a 22 mm diameter rope, offering excellent load management for large-scale projects. To enhance safety and performance, the crane is equipped with advanced brake heat dissipation technology, improving brake capacity by 20% compared to previous models. This system allows for more consistent and safer operation during prolonged lifting tasks.
In terms of control systems, the CX500W stands out with its precision handling features. The crane uses an ESS (Engine Speed Sensing) control system, which improves engine efficiency and performance by optimizing the power output based on load demands. This results in smoother crane operation and improved fuel economy. Additionally, the crane’s advanced drum rotation sensing system ensures that even the most delicate inching operations can be performed with precision, reducing load swing and improving overall safety during lifts.
The operator’s cabin is designed for comfort and high visibility, featuring an expansive front window with a wide-angle view to ensure optimal awareness of the surrounding work area. The cabin includes adjustable ergonomic controls, such as electric fingertip grip levers, which allow operators to make fine adjustments with minimal effort. This innovative control system enhances precision during crane operations, particularly in delicate tasks like clamshell and grapple work, where timing and control are crucial. The cabin also includes conveniences such as intermittent wipers, a rolled sunshade, and climate controls to maintain a comfortable working environment during long shifts.
Safety is a top priority in the Hitachi CX500W, which is equipped with a range of safety devices, including a swing lock, drum pawl locks, moment limiters, and overhoist prevention systems. These features ensure that the crane operates within safe parameters, preventing overloading and minimizing the risk of accidents during lifting tasks.
The CX500W is built with a durable lattice boom that offers excellent strength-to-weight ratios, providing both stability and flexibility in various lifting configurations. The boom backstop and hoist ropes (ranging from 16 mm to 22 mm in diameter) provide additional safety and load control features, allowing operators to handle large loads with confidence.
In summary, the Hitachi CX500W is a high-performing 50-ton truck crane that combines power, precision, and safety. Its advanced control systems, efficient winch technology, and operator-friendly cabin design make it ideal for heavy lifting applications, particularly in environments that require both high capacity and precise load handling. The crane’s enhanced safety features and ergonomic controls ensure both productivity and reliability in demanding work environments.
