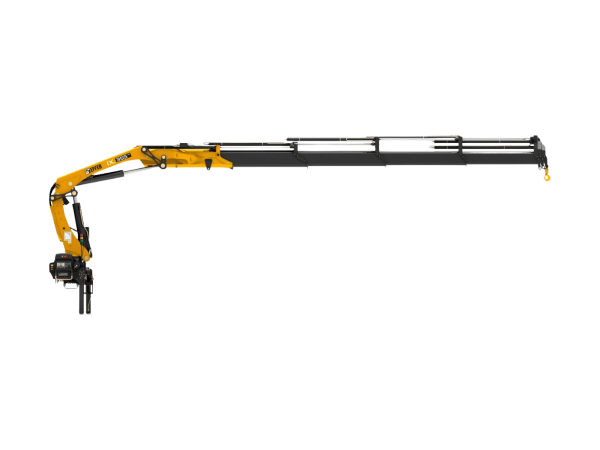

Effer iX.355 HP

The Effer iX.355 HP is part of the manufacturer’s latest iX series of articulated loader cranes, a range developed to integrate modern digital control systems with improved hydraulic performance and durable structural design. With a rated lifting moment of 32.1 tonne-metres, the crane is positioned in the medium-capacity segment of truck-mounted cranes, suitable for applications such as construction material handling, equipment installation, infrastructure work, and industrial logistics operations.

A central component of the crane’s technology is the SPACEevo control system, Effer’s advanced electronic control platform. This system manages crane movements and continuously monitors operational parameters such as load conditions, boom position, and stabiliser configuration. The control platform allows operators to perform lifting operations with high precision and smooth movement, even at higher working speeds. It also integrates safety functions designed to protect both the machine and the operator during demanding lifting tasks.

The iX.355 HP is available in E-5 and E-6 configurations, which refer to the number of hydraulic boom extensions installed on the crane. These telescopic boom sections allow the crane to reach significant distances from the truck while maintaining lifting capacity across its working range. For operations requiring extended reach or greater working flexibility, the crane can also be equipped with an optional JIB 70X-4 articulated fly jib, which further increases the crane’s outreach and allows lifting operations in areas that are difficult to access directly with the main boom.

The hydraulic system of the crane is equipped with a variable displacement pump, which automatically adjusts hydraulic oil flow based on the load demand. This design improves the efficiency of the hydraulic system by providing higher flow rates during heavy lifting operations while reducing energy consumption when the crane is operating under lighter loads. As a result, the crane achieves improved lifting performance together with reduced fuel consumption for the carrier vehicle.

Structural durability is enhanced through the use of nano-based protective coating technology applied to the crane’s main components. This protective coating helps shield the crane from corrosion, rust, and environmental damage caused by exposure to moisture, dust, and other external conditions. By preventing surface degradation, the coating helps maintain the crane’s structural integrity, visual appearance, and long-term residual value.

Like other modern Effer cranes designed for international markets, the iX.355 HP is CE certified, confirming that the crane meets European safety and operational standards for lifting equipment. These standards ensure that the crane incorporates appropriate safety systems, structural reliability, and operator protection.

Overall, the Effer iX.355 HP represents a modern medium-capacity loader crane combining 32.1 tonne-metre lifting capability, advanced electronic control technology, efficient hydraulic performance, and durable construction. Its compact installation footprint and optional jib extensions make it well suited for construction, transportation logistics, infrastructure maintenance, and industrial material handling applications, where versatility and operational efficiency are essential.
