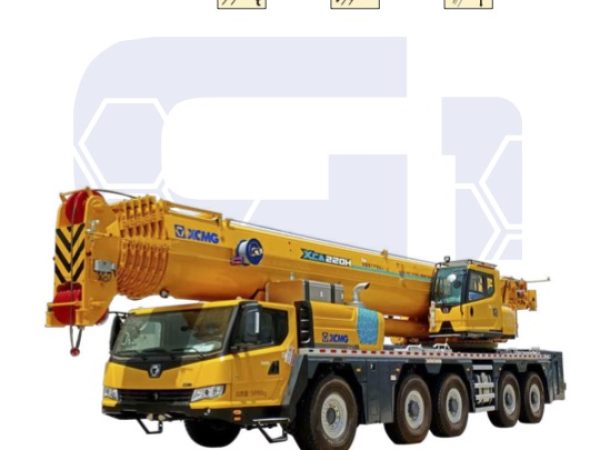

XCMG XCA220H

Mobile Crane

The XCMG XCA220H is a 220-ton all-terrain crane featuring a 7-section U-shaped boom extending from 13.3 to 72 meters, a lattice jib up to 40 meters, and various counterweight configurations up to 72 tons. It is equipped with either a SINOTRUK or Weichai 6-cylinder diesel engine, compliant with China V or Euro V emission standards, respectively.

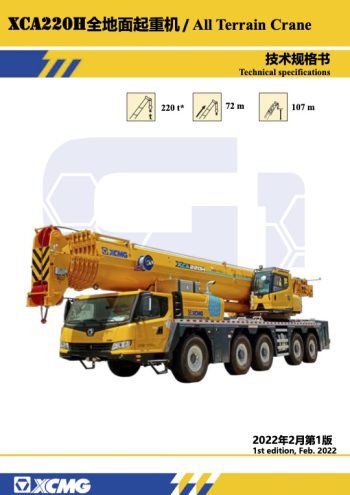

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The XCMG XCA220H is a robust 220-ton capacity all-terrain crane engineered for versatile lifting tasks. The crane’s main boom consists of a 7-section U cross-section structure, with lengths ranging from 13.3 meters to a maximum of 72 meters. The boom utilizes a single-cylinder pinning telescoping system, aided by a double-acting cylinder with a safety valve to control the extension and retraction of the sections. This configuration offers flexibility in telescoping patterns for various lifting scenarios.

Complementing the boom is a lattice jib with lengths between 12 and 40 meters, available in multiple configurations (12, 16, 20, 24, 28, 32, 8+24, 8+28, and 8+32 meters). The jib can be offset at 0°, 20°, and 40° angles, enhancing the crane’s adaptability in handling complex lifting operations.

The crane’s counterweight system is designed to be flexible with six different combinations, from 12 tons to a full 72-ton configuration. This allows operators to optimize stability and lifting capacity according to the requirements of the task.

The chassis is built with high-strength steel, incorporating an anti-torsion box-type structure for enhanced durability and stability. The crane is supported by four hydraulically operated outriggers arranged in an H-shape, with each outrigger equipped with a check valve and double-way hydraulic valve for secure operation. The floats have dimensions of 600 mm x 600 mm, providing a solid foundation, with maximum reaction forces of 860 kN for the front outriggers and 1170 kN for the rear.

Powering the XCA220H are two engine options: the MC13.54-50 by SINOTRUK, an in-line 6-cylinder diesel engine with a rated power of 400 kW at 1900 rpm, compliant with China V emission standards, or the WP13.530E501 by Weichai, a 6-cylinder diesel engine delivering 390 kW at 1900 rpm, meeting Euro V standards. Both engines offer a maximum torque of 2500 Nm and share a fuel tank capacity of 592 liters.

Overall, the XCMG XCA220H is a high-performance crane designed for diverse terrain and demanding lifting requirements, featuring advanced engineering to ensure safe, efficient, and reliable operations.
