Fuwa FWX2400
The Fuwa FWX2400 is a 400-tonne capacity crawler crane powered by a Cummins QSM11 engine, featuring a maximum lifting moment of 2300 tonne-meters. It offers versatile configurations with a standard boom length of up to 78 meters, extendable with a luffing jib for a combined reach of 144 meters, making it suitable for large-scale construction and heavy industrial lifting.

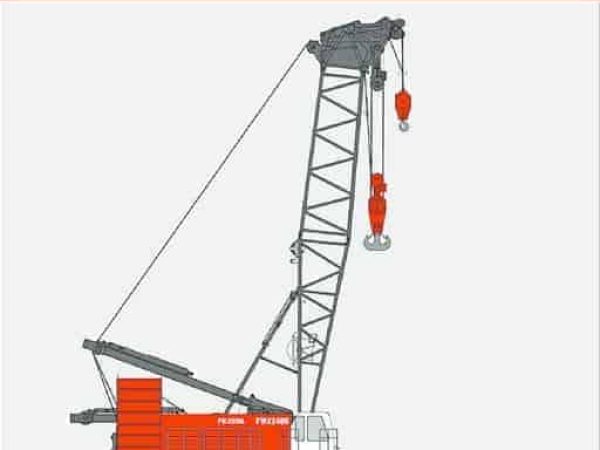

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
The Fuwa FWX2400 crawler crane is a high-performance lifting machine with a maximum lifting capacity of 400 tonnes. This crane is designed to handle demanding lifting tasks in large-scale infrastructure and industrial projects. With a maximum lifting torque of 2300 tonne-meters, the FWX2400 provides substantial lifting power and flexibility. It is equipped with a standard boom that extends from 18 to 78 meters and can be configured with a luffing jib, increasing the total reach to 144 meters, which includes a luffing jib length of up to 66 meters.
Powered by a Cummins QSM11 diesel engine, the FWX2400 delivers 298 kW of power at 2100 rpm, supporting a robust hydraulic system that optimizes the crane’s performance. The crane operates with a high-grade hydraulic system featuring CAN-BUS technology, which integrates electronic control and diagnostic systems for efficient and reliable operation. The hydraulic pumps are managed by Rexroth controllers, providing precise control over hoisting, swing, and travel functions.
The FWX2400 boasts impressive operational speeds, with hoisting speeds of up to 45 m/min, boom derricking speeds of 2 x 36 m/min, and luffing jib derricking speeds up to 108 m/min. The crane can rotate at a speed of up to 1.1 rpm and travel at speeds up to 1.2 km/h, maintaining maneuverability and precision on various terrain types. Its gradeability is 30%, and the ground bearing pressure is maintained at 1.4 kg/cm², ensuring stability during lifts on uneven surfaces.
For load handling and stability, the FWX2400 features an adjustable counterweight system with a total counterweight of 345 tonnes, distributed across multiple ballast sections (120t main counterweight, 40t central ballast, and additional 185t in variable segments). The crane’s transport dimensions are 14,550 mm (L) x 8,790 mm (W) x 4,490 mm (H), and it is designed for easy assembly and disassembly with quick-connect features between the undercarriage and superstructure.
The crane’s cab is ergonomically designed, offering 1200 mm width and an adjustable seating area, with a clear front window that swings open for visibility. Standard amenities include air conditioning, electric monitoring, and a full suite of controls for safe operation. The FWX2400’s undercarriage features hydraulically adjustable tracks, each 1,290 mm wide, providing additional stability and flexibility during operation.
The FWX2400’s attachments include multiple hook block options, with capacities up to 400 tonnes, enabling it to handle a wide variety of loads. It is an ideal crane for heavy-duty applications requiring reliable performance, advanced safety features, and modular configuration options to suit a range of lifting scenarios.
