Hiab iQ.958 HiPro
The new HIAB iQ.958 HiPro heavy loader crane with the new advanced operating system SPACEevo to improve productivity and safer operation. Due to its design, it delivers an excellent lift-to-weight ratio. The crane was exhibited by Hiab at IAA, pavilion P35, in Hannover, Germany, 20 – 25 September 2022.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description

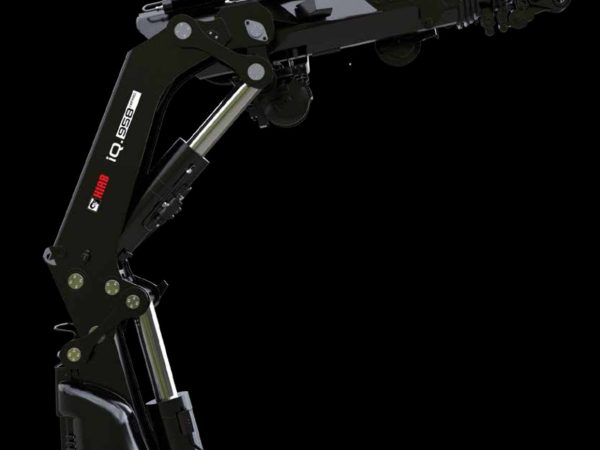

The HIAB iQ.958 HiPro is a 90 tonne metre ™ heavy range crane. It is the second model in the iQ range with the advanced technology platform introduced with the HIAB iQ.1188 HiPro.

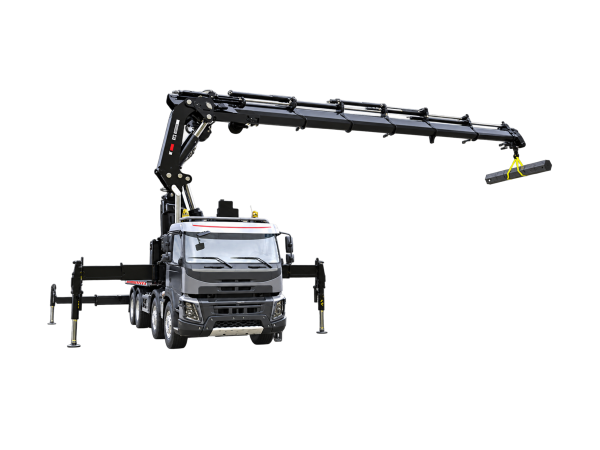

The HIAB iQ.958 HiPro structurally builds on the V12-Power boom shape design for the crane and the JIB. The result is an extremely light and compact crane with an under two metres side section that can be installed on smaller trucks within the 4 axle 32 tonnes GVW (gross vehicle weight) category, leaving plenty of loading capacity that can reduce the number of trips needed. The lower vehicle weight when unloaded and subsequent need for fewer trips contributes to lower fuel consumption and reduced CO2 emissions in the customer’s operation.
The crane uses the new control system SPACEevo that enables precise operations even at high speeds. It also offers advanced safety and productivity features like VSL+ (Variable Stability Logic PLUS) that can maximise the lifting capacity by calculating the stability according to the position of the stabiliser legs and the actual total weight of the truck.
The DLC-S (Dynamic Load Chart) lets the operator set up the crane quicker by simulating the load capacity before opening the stabilisers, avoiding lost time in finding the correct stabiliser position for maximum lifting. This can be done from the comfort of the truck cabin, particularly handy when operating in adverse weather conditions.
The standard XS Drive remote control can be substituted with the new optional CombiDrive 4 remote control. It enhances the crane operation with new safety features such as Confirm View to find the best field of view, three high definition and bright colour displays and a long-lasting battery with single-user operator personalisation settings.
The HIAB iQ.958 HiPro is a technologically advanced crane for its category, offering great performance for a wide variety of lifts both in horizontal and vertical positions. The crane offers among the best in class lifting performance when using the eighth extension in combination with the JIB with six extensions (JIB 155Q). This maximises the available JIB power to provide superior load capability.
Highlights
- 90tm range category
- SPACEevo control system.
- New, advanced V12-Power dodecagonal shaped boom and JIB profile for lightweight and compact frame size fitting within a built in space of two metres and below the 4 metres height of passage doors with all the options and JIB installed.
- An all-purpose crane that delivers the performance of its category with the weight and frame size of the range below, increasing the available payload and making it possible to install on smaller truck sizes (4 axle 32 tonnes GVW) while keeping installation and running costs the most convenient possible.
- Variable pump, for increased flow performances and reduced fuel consumption
- nDurance nano-based technology coating assures long-lasting protection of the crane and its parts from corrosion, rust or external environmental factors that would affect its appearance and residual value over time.
- HIAB iQ.958 HiPro has in-built connectivity so that owners can access Hiab’s HiConnect™.
- CE marked
- Non-CE version available
