Palfinger PK 53002 SH

Palfinger PK 53002 SH is a 50.1 mt rated lifting moment loader crane.

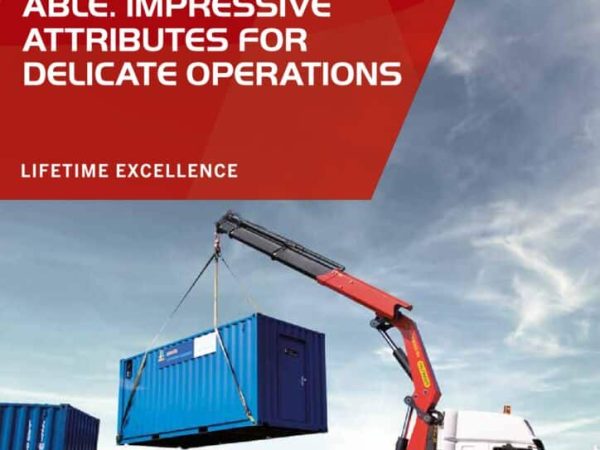

thumbnail of PK53002-SH_spec_mt_en

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

Technical Data

Max. lifting moment 50.1 mt
Max. lifting capacity 18200 kg
Max. hydraulic outreach 21.0 m
Max. outreach (with fly jib) 32.5 m
Slewing angle
Slewing torque with 1 gear 4.0 mt
Slewing torque with 2 gears 5.5 mt
Stabilizer spread (std) 7.8 m
Width folded 2.51 m
Max. operating pressure 365 bar
Pump capacity 90 – 120 l/min
Dead weight (std) 4155 kg

Hufferman Special Customization

In 2015, lifting specialist Huffermann from Wildeshausen in Germany launched a new electric assembly crane. The model consists of a Palfinger PK 53002-SH articulating hydraulic loader crane fitted on a chassis designed by Hüffermann. Both the chassis and crane are powered by a traction battery or via a mains power cable. The crane has a maximum reach of 23 metres and a 1.2 metres high support system. the electrically driven crane has a capacity of 10.2 tonnes at 4 metres and lifts 2.5 tonnes when working at a 16 metres radius. It is designed to work in sensitive areas, producing no noise or exhaust gas emissions. It has a length of 5.6 metres, a width of 1.9 metres and a turning radius of fewer than 3.9 metres. The axles can be controlled individually and it is fitted with variable extendable outriggers.
