Palfinger PK33002 EH Load Chart PDF + Specifications
Palfinger PK 33002 EH is a 10-tonne rated capacity knuckle boom crane.

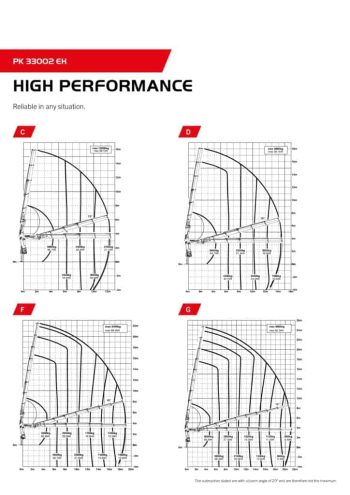

Download Load Chart Here
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.
Key Features & Benefits
Surface protection of highest quality. Perfect appearance during the entire lifetime.
- More efficiency with fly-jib due to DPS Plus
- Perfect appearance and the highest value retention due to coating technology
- Additional applications with Power Link Plus
- More lifting power due to E-HPLS
- Increased operating times due to low-maintenance extension system
Technical Data
| Max. lifting moment | 30.0 mt |
| Max. lifting capacity | 10000 kg |
| Max. hydraulic outreach | 21.3 m |
| Max. outreach (with fly jib) | 29.4 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 3.2 mt |
| Stabilizer spread (std) | 5.6 m |
| Fitting space required (std) | 1.01 m |
| Width folded | 2.53 m |
| Max. operating pressure | 350 bar |
| Pump capacity | 80 – 100 l/min |
| Dead weight (std) | 2876 kg |
