Maeda MC283CF Load Chart PDF + Specifications

Technical Specifications

  • Max. Lifting Capacity: 2.82t x 1.4m
  • Max. Working Radius: 5.17m
  • Max. Lifting Height: 5.765m



Download Load Chart Here

somdn_product_page
MC283CF | Metric | Japanese

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

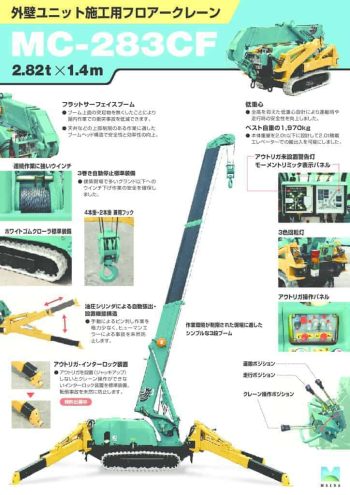

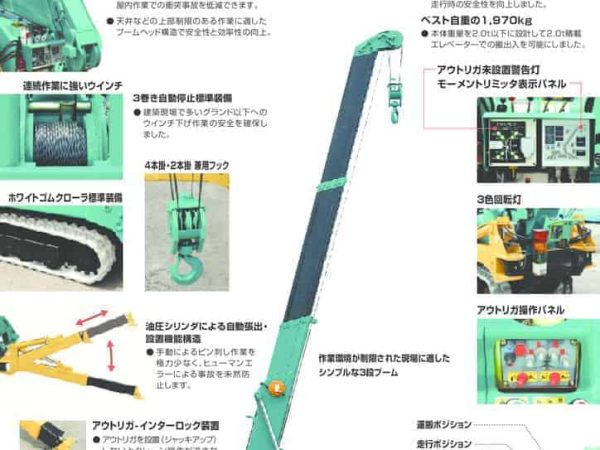

thumbnail of MC283CF_spec_mt_ja
