Maeda MC305C-3

Maeda  MC305C-3 was debut during the CONEXPO Las Vegas 2020. For the updated MC305C-3, there are new lightweight, corrosion-resistant fibreglass body covers and a new protection bar to increase operator safety. The larger of two cranes, the MC405-3, now have to pick and carry capability with loads up to 1,100 pounds (500 kg). A 3,300 pound (1.5 tonnes) capacity searcher hook will also be introduced as an option on both models to make them more versatile. As standard both come with remote control, LMI and continuous rotation. A full-electric version of this crane, MC305CB-3 is also launched during Vertikal Days 2021.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

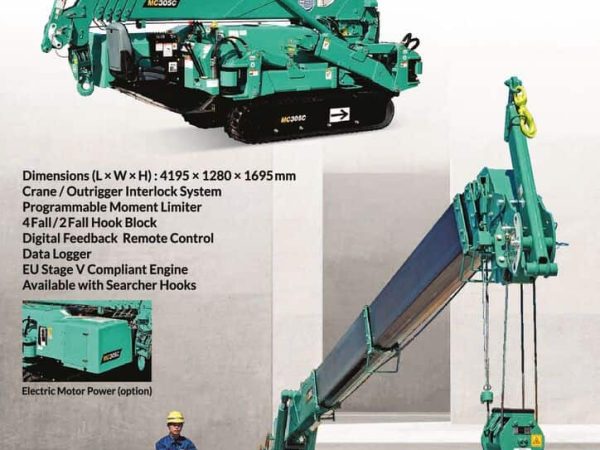

thumbnail of MC305C-3_catalog_en
MC305C-3 | Metric | EN

Product Description

Crane Capacity 2.98t x 2.5m
Max. Working Radius 12.16m x 0.26t
Max. Lifting Height 12.52m
Max. Reach Below Ground -16.09m (4 falls)
Outrigger Max. Extended Width (Lateral) 4,888mm x (Front) 4,504mm x (Rear) 4,396mm
Travel Speed 0-2.8km/h
Travel Ground Pressure (MC305CRM-2) 36.3kpa [0.37kgf/cm2]
Travel Ground Pressure (MC305CRME-2) 37.3kpa [0.38kgf/cm2]
Engine YANMAR 3TNV76 / Diesel
Engine Rated Output 15.2kw/2,500rpm
Electric Motor 5.5kw, 4P 380V
Dimensions 4,285mm (L) x 1,280mm (W) x 1,695mm (H)
Machine Weight 3,900kg (4,080kg with electric motor)
