Kitagawa JCL280GK
The JCL280GK is a new “Building Man” “GK” series that combines the NK series concepts “simple,” “lightweight,” and “compact,” with features such as mono-rope specifications and long jib specifications for hoisting wires that are mainstream overseas.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Advertisement
Product Description
Features
- Maximum self-supporting height 46.8m
- Switchable between 2 and 4 hooks
- Can be used as a mast with JCL180NK
- Hoisting speed is up to 160m / min at light load with 2 hooks
- Transport is a total of 11 vehicles (4 12t vehicles and 7 10t vehicles (45m jib, 45m mast))

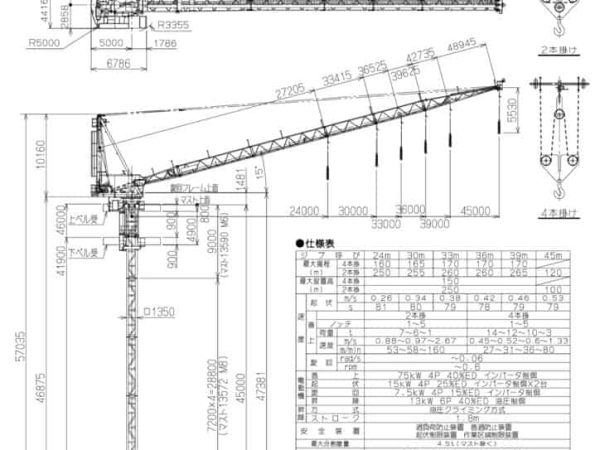

Model | JCL280 | ||||||||
---|---|---|---|---|---|---|---|---|---|
Jib call |
24m
|
30m
|
33m
|
36m
|
39m
|
45m
|
|||
Maximum lift (m) * 1 | 4 hooks |
160
|
165
|
170
|
–
|
||||
2 hooks |
250
|
255
|
260
|
265
|
120
|
||||
Maximum installation height (m) * 2 | 4 hooks |
150
|
–
|
||||||
2 hooks |
250
|
100
|
|||||||
Speed of |
Ups and downs | m / s |
0.26
|
0.34
|
0.38
|
0.42
|
0.46
|
0.53
|
|
s |
81
|
80
|
79
|
78 78
|
79
|
||||
Winding up |
2 hooks
|
4 hooks
|
|||||||
notch |
1-5
|
1-5
|
|||||||
load | t |
7-6-1
|
14-12-10-3
|
||||||
speed | m / s |
0.88 to 0.97 to 2.67
|
0.45-0.52-0.6-1.33
|
||||||
m / min |
53-58-160
|
27-31-36-80
|
|||||||
Turning | rad / s |
~ 0.06
|
|||||||
rpm |
~ 0.6
|
||||||||
Electric motion machine |
Winding up |
75kW 4P 40% ED Inverter control
|
|||||||
Ups and downs |
15kW 4P 25% ED Inverter control x 2
|
||||||||
Turning |
7.5kW 4P 15% ED Inverter control
|
||||||||
Lifting and lowering |
13kW 6P 40% ED Flood control
|
||||||||
Lifting and lowering | method |
Hydraulic climbing method
|
|||||||
stroke |
1.8m
|
||||||||
Safety device |
Overload prevention device Overload prevention device
Undulation limiter Work area limiter |
||||||||
Maximum split weight |
4.5t (excluding mast)
|
||||||||
Power supply |
3φ 3W AC400V / 440V 50 / 60Hz
Equipment capacity 130kW Power supply capacity 165kVA |
