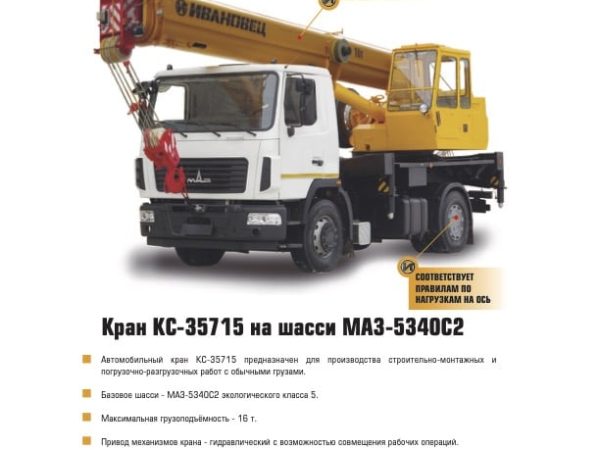

Ivanovets KC-35715

The KC-35715 crane has a maximum lifting capacity of 16 tons, suitable for handling both standard and potentially hazardous loads. This versatility makes it ideal for various project needs, from construction sites to specialized industrial applications.

Chassis and Mobility

• Chassis: Built on a MAZ-5340C2 chassis with a 4×2 wheel configuration, it meets Euro 5 emission standards. This configuration provides the crane with a stable platform, essential for safe and efficient operations in various environments.
• Engine: Equipped with a YaMZ-53653 engine, delivering 176 kW (240 horsepower), ensuring robust performance necessary for heavy lifting and mobility.

Boom and Jib Configuration

• Boom Length: The crane features an 18-meter telescopic boom, which can be extended with a 7-meter jib, pushing the maximum lifting height to 25 meters. This setup allows for substantial reach and versatility in handling different types of loads.
• Jib Details: The jib can be positioned to enhance the operational reach and is transportable on a separate vehicle, ensuring ease of movement and setup at different sites.

Safety and Control Systems

• Lifting Limiter: Includes a microprocessor-controlled lifting limiter with a digital display and an integrated data recorder. This system monitors and adjusts operational parameters to ensure safety and precision during lifting operations.

Operational Specifications

• Lifting Speeds: The crane operates with a lifting speed range from 0.2 to 8.5 meters per minute, with a maximum speed for hook lifting at 35.0 meters per minute.
• Slewing Speed: Capable of slewing between 0.3 and 2.5 rotations per minute, providing controlled and efficient load handling.
• Travel Speed: Achieves a travel speed of up to 60 km/h, facilitating quick and efficient transitions between job sites.

Physical Dimensions and Weight

• Dimensions: The crane’s overall dimensions in the transport position are 10,000 mm in length, 2,550 mm in width, and 3,950 mm in height.
• Weight: The equipped mass with the main boom is approximately 17.43 tons, distributed efficiently to maintain stability and performance.

Overall, the Ivanovets KC-35715 combines robust construction, advanced lifting capabilities, and high mobility, making it a valuable asset for various lifting and construction tasks.
