Sany Palfinger SPS 12500
Sany Palfinger SPS 12500 is a 12.5 mt rated truck mounted crane.

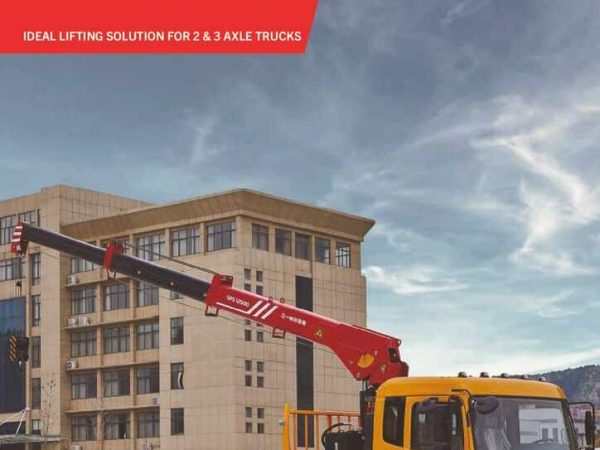

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Advertisement
Product Description
Basic Data | SPS 12500A | SPS 12500B |
---|---|---|
Rated Lifting Moment | 12.5 mt | 12.5 mt |
Rated Lifting Capacity | 5000 kg (2.5m) | 5000 kg (2.2m) |
Max. outreach | 9.0 m | 11.6 m |
Max. lines of the hook | 4 | 4 |
Slewing angle | Continuous | Continuous |
Boom raising angle | 0 ~ 75° | 0 ~ 75 ° |
Max. lifting height (the measurement from the ground after the outriggers are fully extended) | 11.1 m | 13.6 m |
Length of the boom system (retracted) | 4.3 m | 4.3 m |
Length of the boom system (fully extended) | 9.3 m | 11.9 m |
Boom sections | 3 | 4 |
Outrigger span (fully extended) | 5100 (mm) | 5100 (mm) |
Recommended flow rate | 35 – 50 L/min | 35 – 50 L/min |
Operating pressure | 25 Mpa | 25 Mpa |
Recommended oil tank capacity | 100 L | 100 L |
Crane moment (dynamic) | 176.4 kNm 18.0 mt |
168.6 kNm 17.2 mt |
Torsional moment (dynamic) | 13.1 kNm 1.3 mt |
13.1 kNm 1.3 mt |
Crane Weight | 2260 kg (Floor Control) | 2370 kg (Floor Control) |
