Unic UR-V550K Series
Unic UR-V550K Series is a 5.05-tonne rated capacity truck-mounted crane. The maximum hook height is between 10.2m to 17.3m and the maximum working radius is between 8.13m to 15.5m.

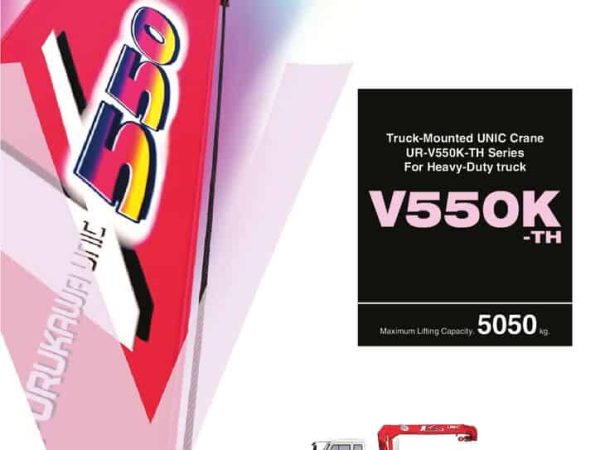

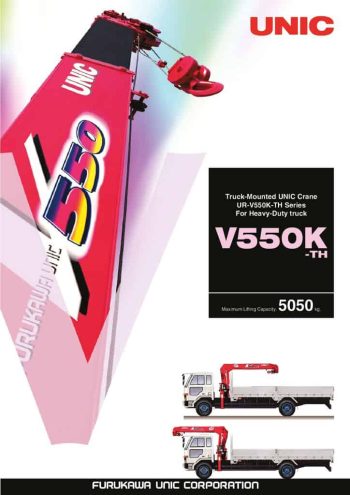

Download Load Chart Here
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.
Product Description
| Model | UR-V553K | UR-V554K | UR-V555K | UR-V556K |
|---|---|---|---|---|
| Max. Lifting Capacity | 5,050 kg at 2.5 m | 5,050 kg at 2.5 m | 5,050 kg at 2.5 m | 5,050 kg at 2.5 m |
| Max. Hook Height | 10.2 m | 12.7 m | 15.1 m | 17.3 m |
| Max. Working Radius | 8.13 m | 10.63 m | 13.14 m | 15.50 m |
| Max. Boom Length | 8.37 m | 10.87 m | 13.38 m | 15.74 m |
| Min. Boom Length | 3.54 m | 3.60 m | 3.78 m | 3.96 m |
| Boom Sections | 3 | 4 | 5 | 6 |
| Boom Raising Angle | Min. 1° to Max. 78° | |||
| Slewing Angle | 360° Continuous | |||
