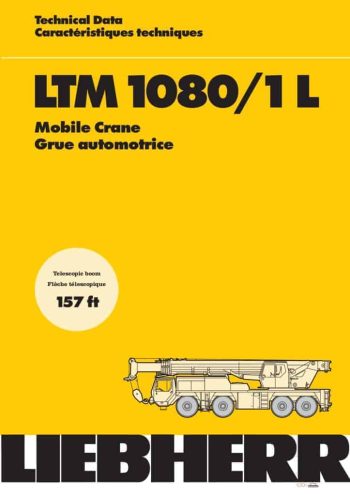

Liebherr LTM 1080/1L

Mobile Crane

The Liebherr LTM 1080/1L is a versatile 100 US ton all-terrain crane, featuring a telescopic boom that can extend from 35 ft up to 157 ft. This crane combines robust lifting capacities with a compact design, making it suitable for a variety of lifting tasks in diverse conditions. The LTM 1080/1L is equipped with a six-cylinder Liebherr diesel engine, which powers both the crane operations and the 8×6 driving configuration, ensuring strong performance both on and off-road.

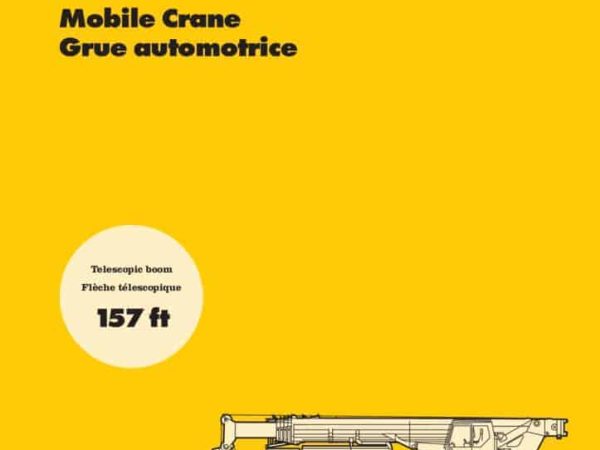

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The Liebherr LTM 1080/1L is designed to handle loads up to 100 US tons, with a hydraulic telescopic boom that extends from 35 ft to 157 ft. This model offers various jib configurations, including a folding jib ranging from 34 ft to 62 ft, enhancing its versatility in handling different lifting tasks.

Boom and Jib Configurations

The main boom has a maximum length of 157 ft, and the crane can be equipped with a folding jib that extends the reach further. The boom’s rapid-cycle telescoping system, known as “TELEMATIK,” allows for quick and efficient adjustment of the boom length to suit specific job requirements.

Engine and Emissions

The crane is powered by a Liebherr D 9406 TI-E diesel engine, which is water-cooled and complies with EURO II emission standards. This engine delivers a power output of 320 kW (435 HP) at 1900 rpm, with a maximum torque of 1338 lbs-ft at 1400 rpm, ensuring sufficient power for various lifting operations.

Drive and Steering System

The LTM 1080/1L features an 8×6 drive configuration, making it capable of navigating both highways and challenging terrain. All axles are steerable, enhancing maneuverability and stability. The crane uses a ZF power shift transmission with six forward and two reverse speeds, including a lock-up and integrated off-road gear ratio.

Safety and Control Systems

Equipped with the LICCON safe load indicator and multiple safety valves, the crane ensures operations are conducted within safe lifting parameters. The control system is managed through two joystick levers and features electronic speed variation for precise handling.

Additional Features

The LTM 1080/1L includes a variety of modern technological enhancements such as a data bus technique for electronic management, a hydropneumatic suspension, and a sophisticated braking system with an exhaust retarder for additional safety. It also offers customizable configurations with additional counterweights and different jib setups to adapt to various operational needs.

This crane model is not only powerful and versatile but also emphasizes safety and efficiency, making it ideal for a wide range of lifting applications in the construction and logistics industries.
