Tadano AC 5.120-1

Tadano AC 5.120-1 is a compact and lightweight five-axle crane with a large lifting capacity, especially with its main boom fully extended. Innovatively equipped and ideal for routes where axle load limits are crucial. It was the upgrade version of ATF-120-5.1 annouced in August 2021.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Boom Length

60

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

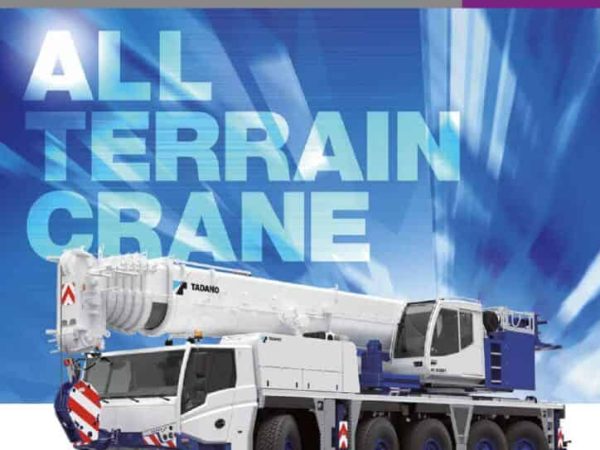

thumbnail of AC5.120-1_spec_mt_en_062021
AC 5.120-1 | Metric | EN | EU Stage V

Product Description

Thanks to a reinforced 60m main boom, the AC 5.120-1 reaches extraordinary lifting capacities. The crane can travel on roads while remaining under a ten-tonne axle load limit and a total weight of 48 tonnes. The AC 5.120-1 remains at a slender width of 2.75 m even with 24 tonnes of counterweight and maintains a counterweight tail swing radius of only 4 m with the full 35.4 tonnes of counterweight. Thanks to the superstructure shared with the AC 4.110-1, 80% of the counterweights for both cranes are interchangeable, as are the boom extensions, including one with reduced complexity. The Lift Adjuster reliably reduces load swinging during lifting and lowering.
