Hitachi ZX135UST

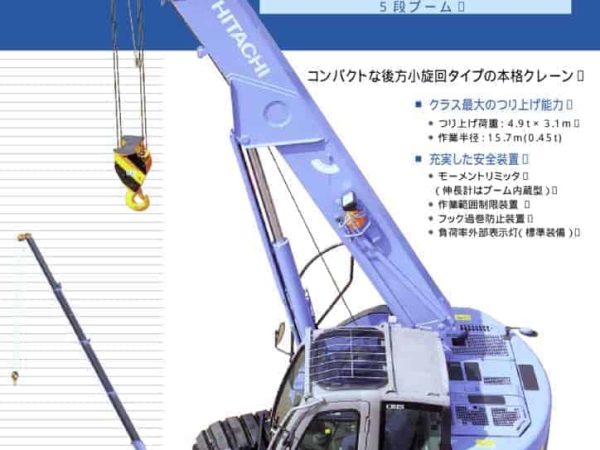

The Hitachi ZX135UST mini crawler crane combines compact design with powerful lifting performance, providing a maximum lifting capacity of 4.9 tons at a 3.1-meter radius. The crane is equipped with a five-section telescopic boom that extends smoothly from 4.4 meters to 15.9 meters, delivering a maximum hook height of 16.6 meters when using four-part reeving. This crane is designed for urban construction and indoor environments where space constraints and overhead obstructions are common.

Its boom elevation ranges from -3° to 78°, with a fast boom raising speed of 13 seconds and boom extension speed of 11.5 m/min (low) to 24.0 m/min (high). The main winch offers high-speed lifting with rope speeds of up to 100 m/min (high) and 64 m/min (low). The standard winch rope has a 10 mm diameter and 160-meter length, supporting efficient above- and below-ground lifting operations.

The ZX135UST is powered by an Isuzu CC-4BG1TC diesel engine generating 63 kW (85 PS) at 1,950 rpm, providing ample power for lifting and traveling operations. Travel speeds reach up to 3.0 km/h, and the swing speed is 2.5 rpm.

Advanced safety systems are central to the ZX135UST’s design. A moment limiter with integrated boom extension sensor prevents overloading by automatically stopping unsafe operations and providing real-time digital readouts of rated load, actual load, hook height, working radius, boom length, and boom angle. Additionally, an external load rate indicator lamp shows safe operation status in 10% increments. The working range restriction device allows the operator to preset limits on boom angles, hook height, and maximum working radius; the crane automatically halts motion upon approaching these limits, providing safe and controlled operation near overhead obstructions or structures. An overhoist prevention device further improves operational safety.

The crane features a compact tail swing radius, ensuring excellent maneuverability in tight workspaces. Its robust hydraulic system, ergonomic operator station, and user-friendly controls combine to provide precise and efficient lifting capabilities.

Overall, the Hitachi ZX135UST is a reliable, versatile mini crawler crane ideally suited for lifting tasks in restricted spaces and urban environments, combining smooth hydraulic control, powerful lifting capacity, and comprehensive safety features.
